Same model may have multiple batches, images only for reference.

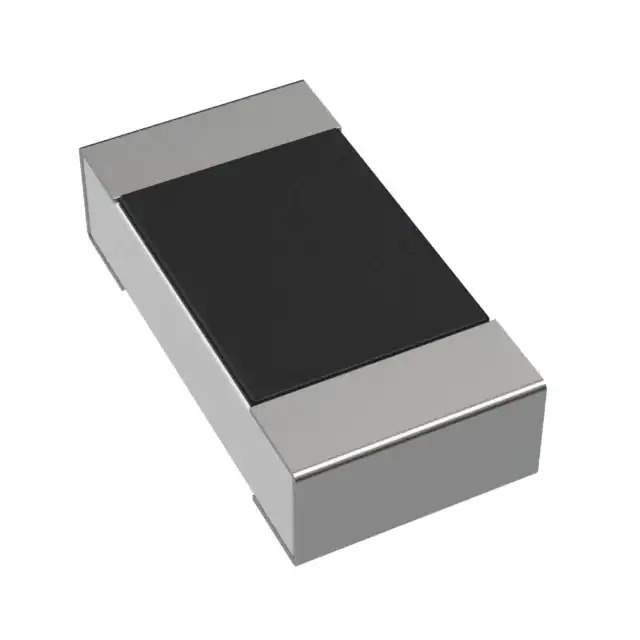

RN73H1JTTD8201B25 Real Image
Same model may have multiple batches, images only for reference.

RN73H1JTTD8201B25

Part No RN73H1JTTD8201B25
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 8.2K OHM 0.1% 1/10W 0603
Datasheet
RN73H1JTTD8201B25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer
Series RN73H
Package Tape & Reel
Product Status Active
Resistance 8.2 kOhms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Metal Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number RN73H1J
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 756138-RN73H1JTTD8201B25
Ultra Librarian 3D Model Ultra Librarian RN73H1JTTD8201B25 CAD Model

Description

The RN73H1JTTD8201B25 is a chip resistor designed for surface mount applications.

  • Series: RN73H
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Maximum Seated Height: 0.022" (0.55mm)
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.1W (1/10W)
  • Resistance Value: 8.2 kOhms
  • Package: 0603 (1608 Metric)
  • Packaging: Tape & reel
  • Automotive Standard: Automotive AEC-Q200
  • Moisture Resistant: Yes
  • Composition: Metal film
  • Manufacturer: KOA Speer
