Same model may have multiple batches, images only for reference.

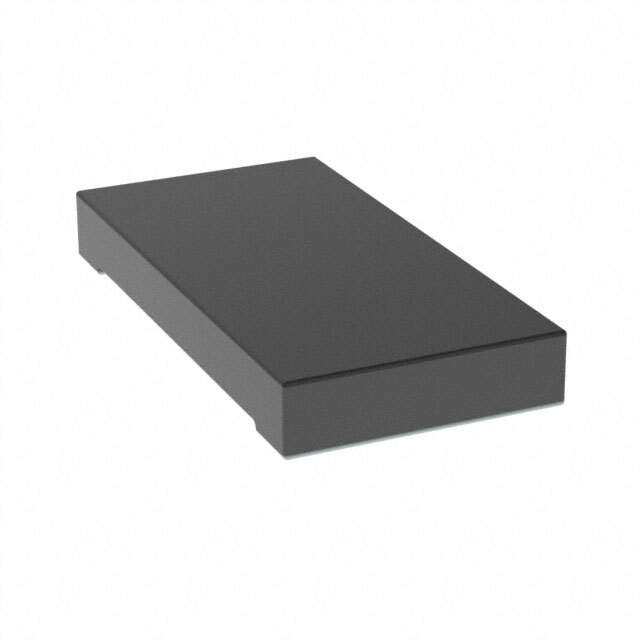

TLR3AWDTE10L0F Real Image
Same model may have multiple batches, images only for reference.

TLR3AWDTE10L0F

Part No TLR3AWDTE10L0F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 2W 2512
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer KOA Speer Electronics, Inc.
Packaging Reel
Resistance 10 mOhms
Tolerance ±1%
Power (W) 2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 155°C
Manufacturer Package 2512 (6432 Metric)
Supplier Device Package 2512
Parts Dimension 0.250" L x 0.125" W (6.35mm x 3.18mm)
Height - Seated (Maximum) 0.033" (0.85mm)
Number of Terminations 2
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 712615-TLR3AWDTE10L0F
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLR3AWDTE10L0F CAD Model

Description

The TLR3AWDTE10L0F from KOA Speer Electronics, Inc. is a metal element current sense resistor with a tolerance of ±1% and a temperature coefficient of ±50ppm/°C.

  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Resistance: 10 mOhms
  • Power: 2W
  • Package: 2512 (6432 Metric)
  • Height: 0.033" (0.85mm)
  • Supply and Demand Status: balance
