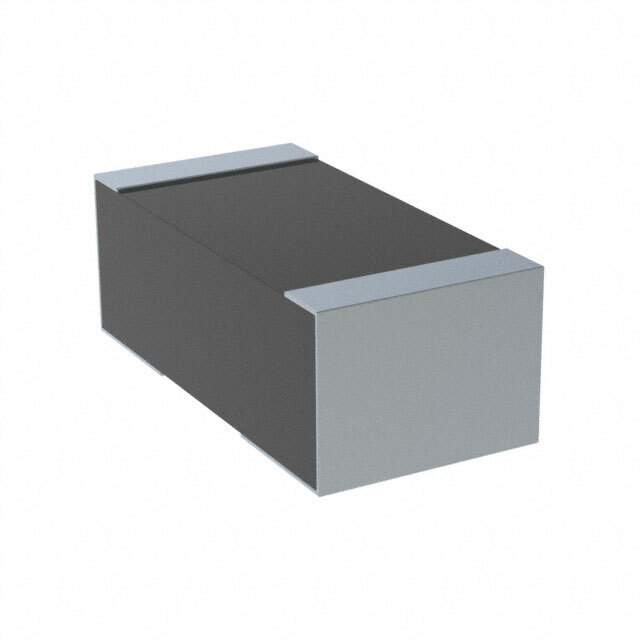

UR73D3ATTE20L0F Real Image
Same model may have multiple batches, images only for reference.

UR73D3ATTE20L0F

Part No UR73D3ATTE20L0F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 20M OHM 1% 1W 2512  /  20 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Current Sense Thick Film
Datasheet
UR73D3ATTE20L0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series UR73
Package Tape & Reel
Resistance 20 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.248" L x 0.122" W (6.30mm x 3.10mm)
Height - Seated (Max) 0.091" (2.30mm)
Number of Terminations 2
Base Product Number UR73D3A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2019-UR73D3ATTE20L0FDKR,2019-UR73D3ATTE20L0FCT,2019-UR73D3ATTE20L0FTR
Standard Package 4,000
Win Source Part Number 1103411-UR73D3ATTE20L0F
Ultra Librarian 3D Model Ultra Librarian UR73D3ATTE20L0F CAD Model

Description

The UR73 series chip resistor from KOA Speer Electronics, Inc. is a thick film resistor with a resistance of 20 mOhms and a power rating of 1W.

  • Resistance: 20 mOhms
  • Power Rating: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±250ppm/°C
  • Package: tape & reel
  • Package/Case: 2512 (6432 Metric)
  • Number of Terminations: 2
  • Device Package: 2512
  • Height Seated (Max): 0.091" (2.30mm)
  • Dimension: 0.248" L x 0.122" W (6.30mm x 3.10mm)
  • Operating Temperature Range: -55°C ~ 125°C
  • Ideal for: current sensing applications
