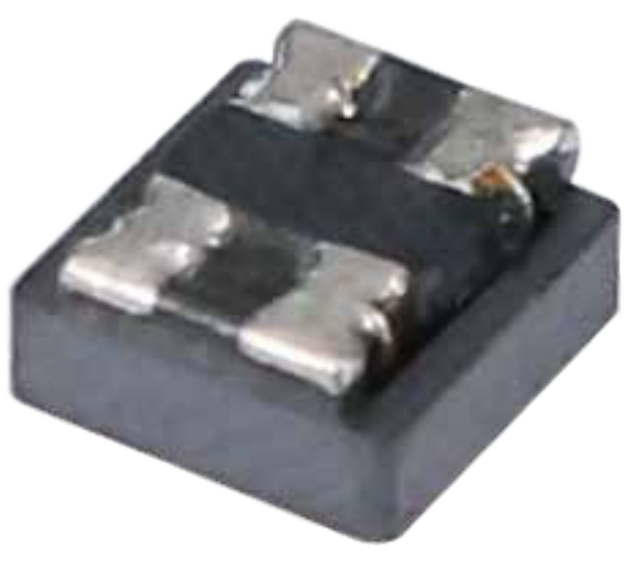

Same model may have multiple batches, images only for reference.

BCMA5020-101N

Name: BCMA5020-101N
Brand: KOHER（Shanghai）Electronics Co.,Ltd
SKU: WS1602374
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BCMA5020-101N
Manufacturer	KOHER（Shanghai）Electronics Co.,Ltd
Catalog	Common Mode Chokes
Description	CMC 100Ω@100MHz 6.0A 13mΩ
Datasheet	BCMA5020-101N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Common Mode Chokes
Z@100MHz(Ω)	100Ω
Saturation Current	6.0A
DC Resistance	13mΩ
Application	·Headlamps, tail lamps and interior lighting ·HVAC ·Doors, window lift and seat control ·Audio subsystem ·Digital instrument cluster ·In-Vehicle Infotainment and navigation
Soldering Reflow
Preheat condition	150 ~200℃/60~180 sec.
Allowed time above 217℃	60~150 sec.
Max temperature	260℃.
Max time at max temperature	10 sec.
Allowed Reflow time	3x max
Features	High common mode impedance at high frequency causeexcellent noise suppression performance"Designed to be low profile and Supports large currents (up to 6 A)"
Operating temperature range	-40 to +125°C(including self-temperature rise)"
Quantity	2500pcs
Ultra Librarian 3D Model	Ultra Librarian BCMA5020-101N CAD Model
