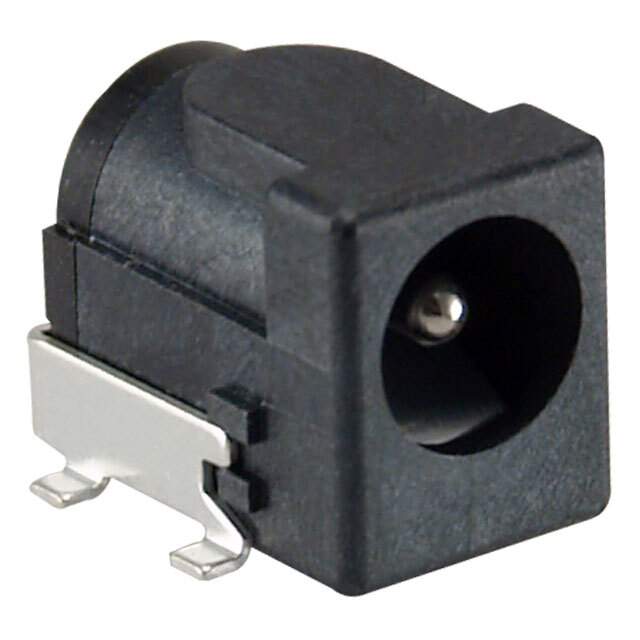

KLDX-SMT2-0202-ATR Real Image
Same model may have multiple batches, images only for reference.

KLDX-SMT2-0202-ATR

Part No KLDX-SMT2-0202-ATR
Manufacturer Kycon, Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2X5.5MM SMT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kycon, Inc.
Packaging Reel
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Style Surface Mount, Right Angle
Termination Solder
Shielding Unshielded
Features Board Guide
Voltage - Rated 24VDC
Current Rating (Amps) 3.5A
Material Flammability Rating UL94 V-0
Contact Material - Plating Silver
Temperature Range - Operating -25°C ~ 65°C
Housing Material Liquid Crystal Polymer (LCP)
Contact Material Brass, Phosphor Bronze
Body Color Black
Manufacturer Pack Quantity 350
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808354-KLDX-SMT2-0202-ATR
Ultra Librarian 3D Model Ultra Librarian KLDX-SMT2-0202-ATR CAD Model

Description

The Kycon KLDX-SMT2-0202-ATR is a surface mount, right angle jack connector that features board guide and is made up of liquid crystal polymer (LCP) housing material.

  • Voltage Rating: 24VDC
  • Shielding: Unshielded
  • Number of Conductors: 2
  • Number of Contacts: 3
  • Switch: 1 (Normally Closed)
  • Contact Material: Brass and Phosphor Bronze with Silver Plating
  • Mating Diameter: 2.00mm ID (0.079") and 5.50mm OD (0.217")
  • Diameter: 0.079" (2.00mm ID) and 0.256" (6.50mm OD)
  • Temperature Range: -25°C ~ 65°C
  • Color: Black
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 350
  • MSL Level: 1 (Unlimited)
  • Current Rating: 3.5A
