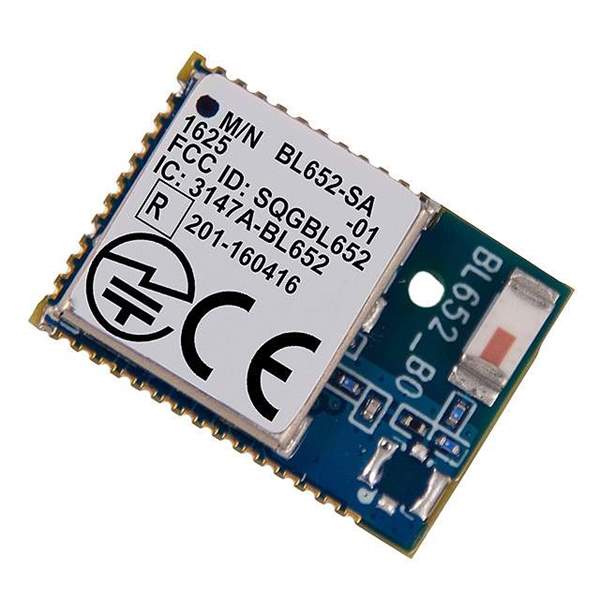

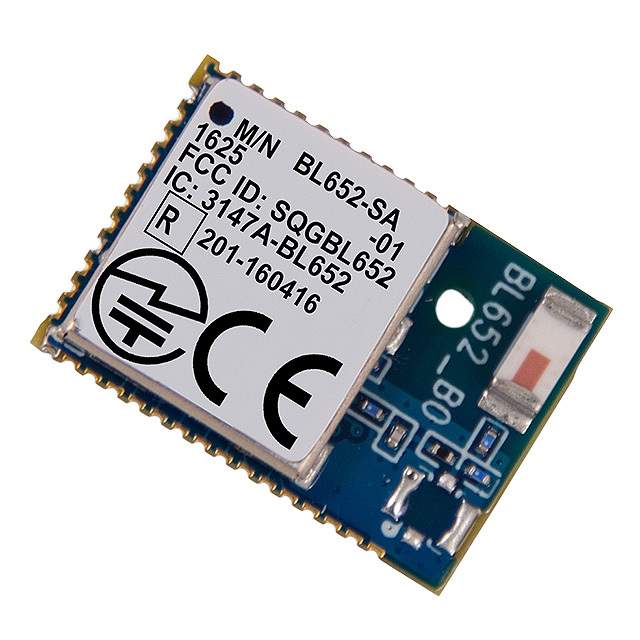

BL652-SA-01-T/R

Part No BL652-SA-01-T/R
Manufacturer Laird Connectivity Inc.
Catalog RF Transceiver Modules
Description RX TXRX MOD BLUETOOTH CHIP SMD / Bluetooth Bluetooth v5.0 Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Laird Connectivity Inc.
Package Tape & Reel
RF Family/Standard Bluetooth
Protocol Bluetooth v5.0
Frequency 2.4GHz
Data Rate 1Mbps
Power - Output 4dBm
Sensitivity -96dBm
Serial Interfaces I2C, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part nRF52832
Memory Size 512kB Flash, 64kB RAM
Voltage - Supply 1.7V ~ 3.6V
Current - Receiving 5.4mA
Current - Transmitting 5.3mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 39-SMD Module
Base Product Number BL652-SA-01
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Other Names BL652-SA-01-CT,BL652-SA-01-DKR,BL652-SA-01,BL652-SA-01-TR
Standard Package 1,000
Win Source Part Number 1213959-BL652-SA-01-T/R
Ultra Librarian 3D Model Ultra Librarian BL652-SA-01-T/R CAD Model

Description

The BL652-SA-01-T/R is an electronic component designed to cater to the needs of the modern electronics industry. It is a high-quality product that belongs to the RF/IF and RFID>RF Transceiver Modules and Modems category. The product has a frequency of 2.4GHz and a protocol of Bluetooth v5.0. The data rate of the BL652-SA-01-T/R is 1Mbps, and it has a memory size of 512kB Flash and 64kB RAM. The product has an integrated, chip antenna type and a power output of 4dBm. The sensitivity of the product is -96dBm, and the current receiving is 5.4mA. The BL652-SA-01-T/R is manufactured by Laird Connectivity Inc. and has a Win Source Part Number of 1213959-BL652-SA-01-T/R. It is a reliable and efficient product that is sure to meet your requirements.
