Same model may have multiple batches, images only for reference.

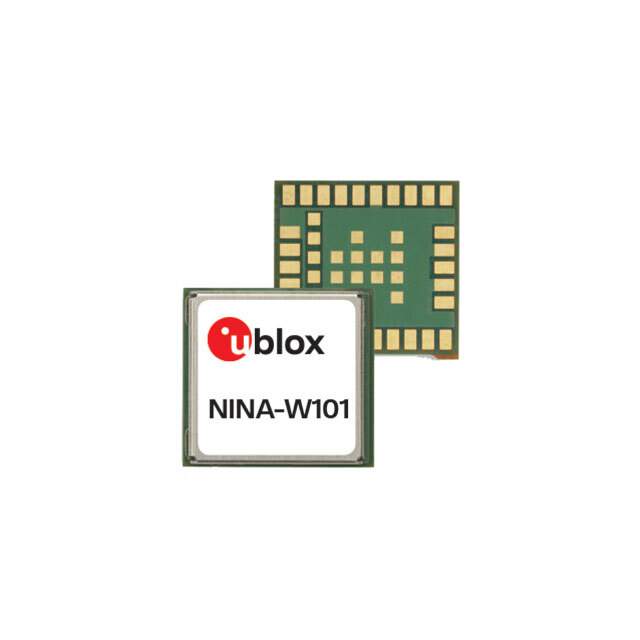

NINA-W101-01B Real Image
Same model may have multiple batches, images only for reference.

NINA-W101-01B

Part No NINA-W101-01B
Manufacturer U-blox
Catalog RF Transceiver Modules
Description RF TXRX MOD WIFI / Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Datasheet
NINA-W101-01B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr U-Blox
Series NINA-W10
Package Tape & Reel
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2
Modulation CCK, DSSS, GFSK, QDPSK, QPSK, OFDM
Frequency 2.4GHz
Data Rate 72Mbps
Power - Output 5dBm
Sensitivity -96dBm
Serial Interfaces ADC, GPIO, I²C, SPI, UART
Antenna Type Antenna Not Included
Utilized IC / Part ESP32-D0WDQ6-V3
Memory Size 16Mb Flash, 448kB ROM, 520kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 95mA
Current - Transmitting 130mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 36-SMD Module
Base Product Number NINA-W101
Standard Package 500
REACH Status REACH Unaffected
Win Source Part Number 1349764-NINA-W101-01B
Ultra Librarian 3D Model Ultra Librarian NINA-W101-01B CAD Model

Description

Looking for a high-performance RF transceiver module or modem? Look no further than this NINA-W10 series module from U-Blox.

  • Frequency: 2.4GHz
  • Protocols: 802.11b/g/n and Bluetooth v4.2
  • Data Rate: 72Mbps
  • Memory Size: 16Mb Flash, 448kB ROM, and 520kB SRAM
  • IC: ESP32-D0WDQ6-V3
  • Modulation Types: CCK, DSSS, GFSK, QDPSK, QPSK, and OFDM
  • Serial Interfaces: ADC, GPIO, I²C, SPI, and UART
  • Package: surface mount
  • Temperature Range: -40°C to 85°C
