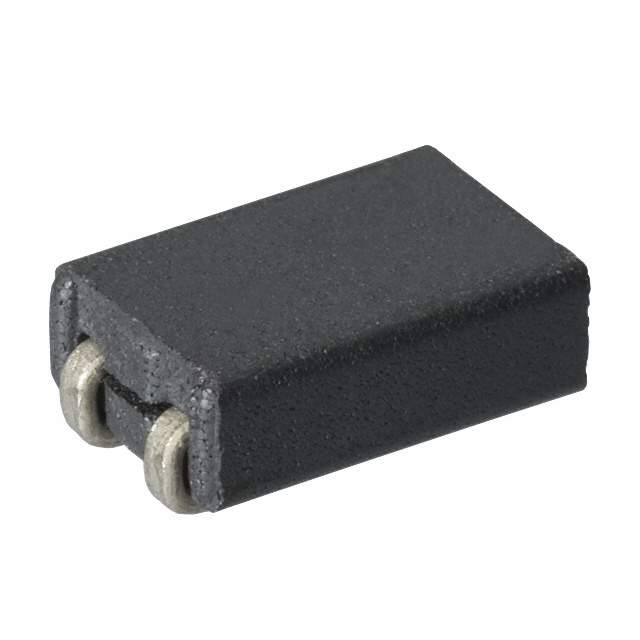

CM3421Y600R-10

Part No CM3421Y600R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 15A 2LN 60 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 60 Ohm @ 100MHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 0.75 mOhm
Voltage Rating - DC 140V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.150" (3.80mm)
Dimension 3822 (8531 Metric), 4 Lead
Win Source Part Number 013201-CM3421Y600R-10
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CM3421Y600R-10 CAD Model

Description

Description

The CM3421Y600R-10 offers superior functionality for complex electronic systems. This component is crafted with precision and attention to detail, ensuring optimal performance in various demanding applications.

Applications

  • Energy-efficient lighting systems
  • Network communication devices
  • Portable electronics
  • Smart appliance technology

Features and Benefits

  • High efficiency: Enhances system performance while conserving power
  • Long-lasting build: Provides extended service life
  • Universal configuration: Fits into multiple electronic assemblies
  • Environmentally friendly: Compliant with sustainable practices

Opt for the CM3421Y600R-10 when reliability, efficiency, and sustainability are key components of your project requirements.
