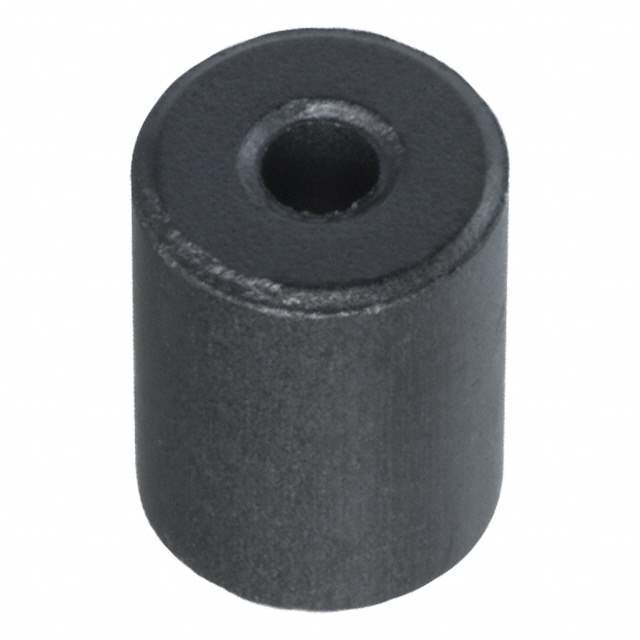

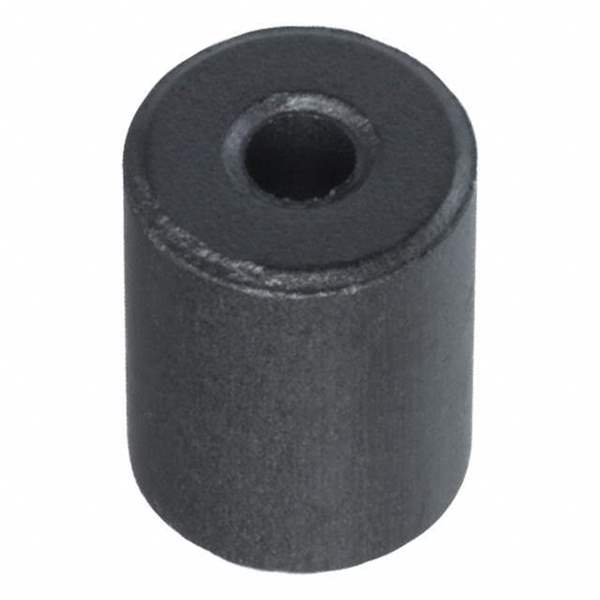

HFB075024-000 Laird-Signal Integrity Products
Same model may have multiple batches, images only for reference.

HFB075024-000

Part No HFB075024-000
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 124 OHM SOLID 2.4MM
Datasheet
HFB075024-000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206283-HFB075024-000
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series HF
Package Bulk
Product Status Active
Type Round
Design Solid
Impedance @ Frequency 124Ohm @ 300MHz
Inner Dimension 0.094" Dia (2.40mm)
Outer Dimension 0.295" Dia (7.50mm)
Ultra Librarian 3D Model Ultra Librarian HFB075024-000 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
