Same model may have multiple batches, images only for reference.

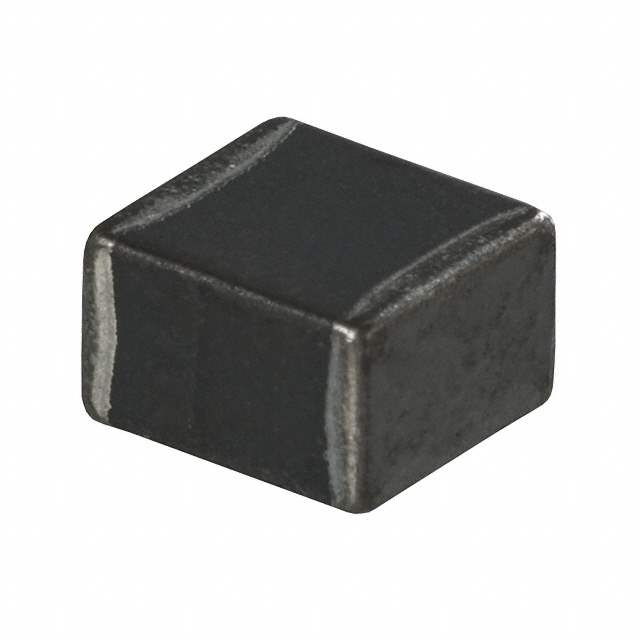

HI2220P551R-00 Real Image
Same model may have multiple batches, images only for reference.

HI2220P551R-00

Part No HI2220P551R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 550 OHM 2220 1LN
Datasheet
HI2220P551R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 550 Ohm @ 100MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 35 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.078" (1.97mm)
Dimension 0.220" L x 0.200" W (5.59mm x 5.08mm)
Win Source Part Number 122293-HI2220P551R-00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HI2220P551R-00 CAD Model

Description

The Laird-Signal Integrity Products HI series SMD ferrite bead is designed to provide effective filtering for a variety of applications. The bead has a maximum current rating of 4A and a maximum DCR of 35 mOhm. It is designed for use in a single line application and has an impedance of 550 Ohm at 100MHz. The package is a reel design and is supplied on a TR. The product is obsolete (EOL) and has a popularity rating of medium. The part number for this product is 122293-HI2220P551R-00.
