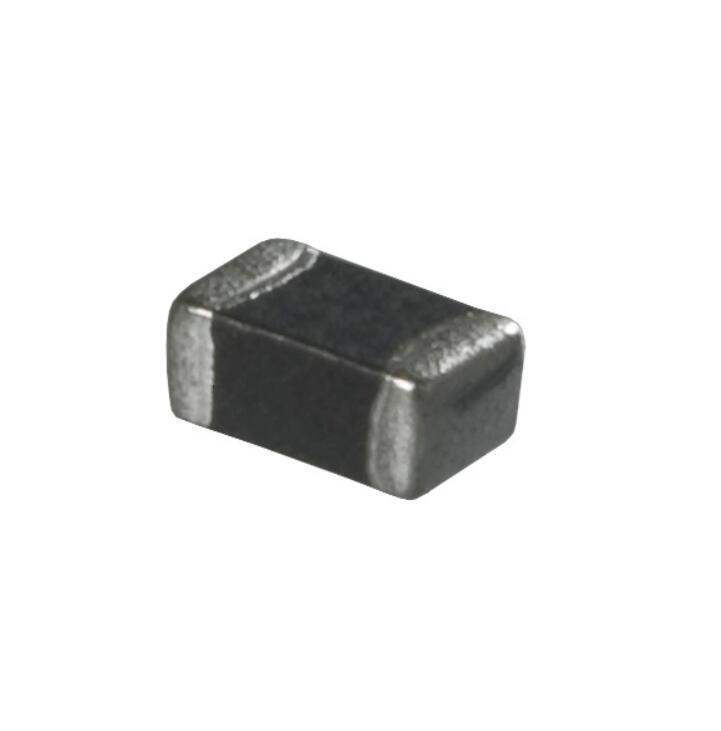

LI0805G301R-10

Part No LI0805G301R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 300 OHM 0805 1LN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203904-LI0805G301R-10
Win Source Part Number Cross
Manufacturer Laird-Signal Integrity Products
Category Filters Ferrite Beads and Chips
Series 0805
Product Status Active
Filter Type Power, Signal Line
Impedance @ Frequency 300 Ohms @ 100 MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 200mOhm
Operating Temperature -40°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian LI0805G301R-10 CAD Model

Description

• Up to 10 Amps (I MAX) continuous operating capability
• Monolithic construction with small footprint and high reliability • Excellent retention under bias
• Economical
• Broad range of sizes (from EIA 0201 up to 3312)
• For power line, low frequency and high frequency signal lines
