Same model may have multiple batches, images only for reference.

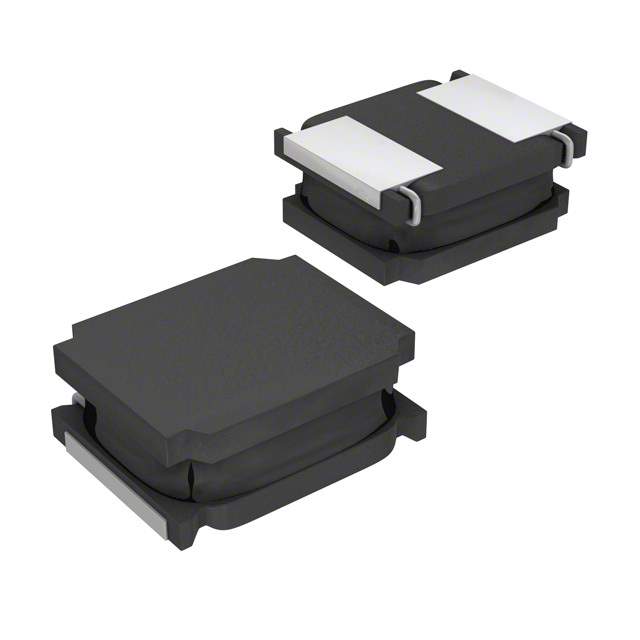

TYS252012L1R0N-10 Real Image
Same model may have multiple batches, images only for reference.

TYS252012L1R0N-10

Part No TYS252012L1R0N-10
Manufacturer Laird-Signal Integrity Products
Catalog Fixed Inductors
Description FIXED IND 1UH 1.93A 83 MOHM SMD / 1 µH Shielded Inductor 1.93 A 83mOhm Max 1008 (2520 Metric)
Datasheet
TYS252012L1R0N-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Inductance 1 µH
Tolerance ±30%
Current Rating (Amps) 1.93 A
Current - Saturation (Isat) 2.59A
Shielding Shielded
DC Resistance (DCR) 83mOhm Max
Frequency - Self Resonant 110MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 240-2620-2,240-2620-1,240-2620-6
Standard Package 2,000
Win Source Part Number 1327370-TYS252012L1R0N-10
Ultra Librarian 3D Model Ultra Librarian TYS252012L1R0N-10 CAD Model

Description

The Laird-Signal Integrity Products 1327370-TYS252012L1R0N-10 is a surface mount shielded inductor.

  • Inductance: 1 µH
  • DC Resistance (DCR): 83mOhm Max
  • Type: Fixed Inductor
  • Packaging: Reel - TR
  • Temperature Range: -40°C to 125°C
  • Current Rating: 1.93 A
  • ROHS3 Compliant: Yes
  • REACH: Not affected
