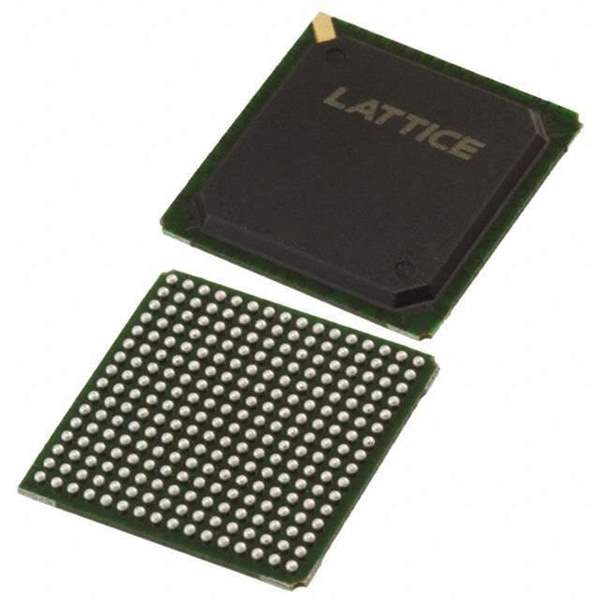

ISPLSI5512VE-125LF256I Real Image
Same model may have multiple batches, images only for reference.

ISPLSI5512VE-125LF256I

Part No ISPLSI5512VE-125LF256I
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description CPLD ispLSI® 5000VE Family 24K Gates 512 Macro Cells 125MHz 3.3V 256-Pin FBGA / IC CPLD 512MC 7.5NS 296FBGA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Lattice Semiconductor Corporation
Packaging Tray
Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 3 V to 3.6 V
Number of Logic Elements/Blocks 16
Number of Macrocells 512
Number of Gates 24000
Number of I/O 192
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 256-FPBGA (17x17)
Win Source Part Number 205645-ISPLSI5512VE-125LF256I
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ispLSI 5512VE
Introduction Date April 04, 2001
ECCN EAR99
Country of Origin Malaysia, Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ISPLSI5512VE-125LF256I CAD Model

Description

The Lattice Semiconductor Corporation ISPLSI5512VE-125LF256I is an in system programmable electronic component.

  • It has: a number of I/O of 192 and a number of gates of 24000.
  • The voltage supply - internal: is 3 V to 3.6 V and the delay time tpd(1) max is 7.5ns.
  • It has: 16 number of logic elements/blocks and 512 macrocells.
  • This component: is mounted SMD (SMT) and is packaged in a tray.
  • It is: obsolete (EOL) and has a high popularity.
  • The supply and demand status: is limited.
