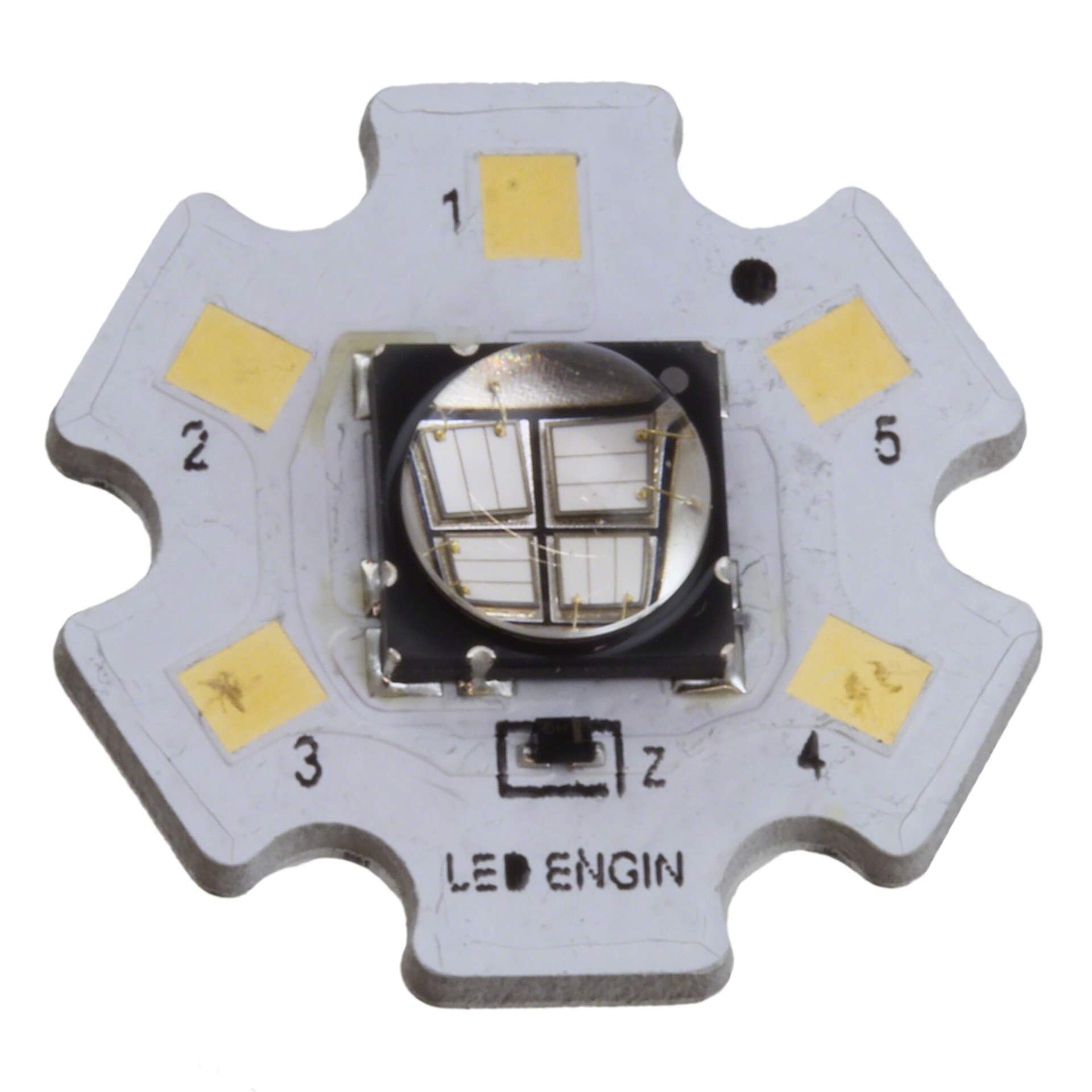

LZ4-00UA00-0000 Real Image
Same model may have multiple batches, images only for reference.

LZ4-00UA00-0000

Part No LZ4-00UA00-0000
Manufacturer LED Engin Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 395NM 1A
Datasheet
LZ4-00UA00-0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer LED Engin Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Ultraviolet (UV)
Continuous forward current- Max 1A
Wavelength 385nm to 410nm
Forward Voltage 4.1V
Viewing Angle 97°
Orientation Top View
Temperature Range - Operating 125°C (TJ)
Mounting Screw Mount
Dimension 8-SMD, No Lead Exposed Pad
Win Source Part Number 142633-LZ4-00UA00-0000
Ultra Librarian 3D Model Ultra Librarian LZ4-00UA00-0000 CAD Model

Description

The LED Engin Inc. 142633-LZ4-00UA00-0000 is an obsolete (EOL) component with a wavelength range of 385nm to 410nm.

  • Mount: Screw mount
  • Orientation: Top view
  • Suitable for: Various optoelectronic applications that require high radiant intensity and a wide viewing angle
  • Temperature Range: 125°C (TJ)
  • Supply and Demand Status: Limited
