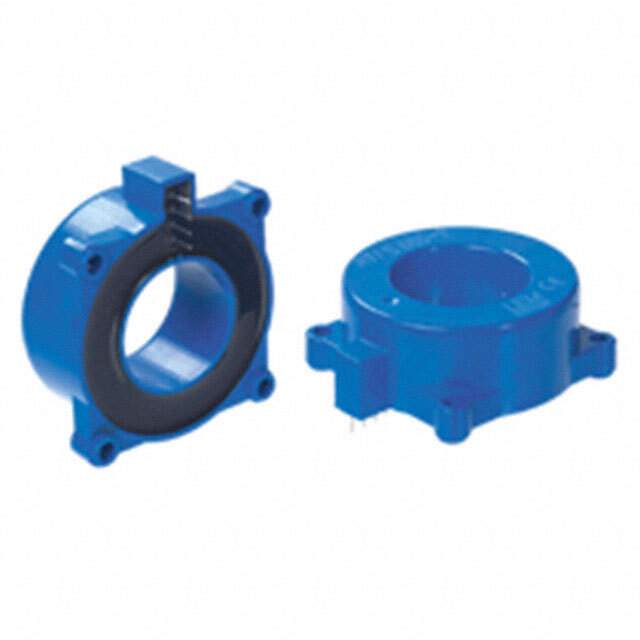

HTFS 800-P Real Image
Same model may have multiple batches, images only for reference.

HTFS 800-P

Part No HTFS 800-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 800A AC/DC / Diode Switching 600V 1A 2-Pin TS-1 T/R
Datasheet
HTFS 800-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series HTFS
Packaging Tube
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 800A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 240kHz
Linearity ±0.5%
Accuracy ±1%
Operating Supply Voltage 5V
Response Time 3.5μs
Maximum Supply Current 25mA
Operating Temperature Range -40°C ~ 105°C
Polarization Bidirectional
Mounting Style Through Hole
Package Module
Win Source Part Number 776242-HTFS 800-P
Popularity Medium
Supply and Demand Status Limited
Quantity per package 25
Family Name HT16G
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HTFS 800-P CAD Model

Description

The HTFS 800-P is a Hall effect sensor module manufactured by LEM USA Inc.

  • Series: HTFS
  • Packaging: Tube
  • Applications: AC/DC Current Measuring
  • Polarization: Bidirectional
  • Supply and Demand: Limited
  • Current Sensing: 800A
  • Response Time: 3.5μs
  • Frequency Range: DC to 240kHz
