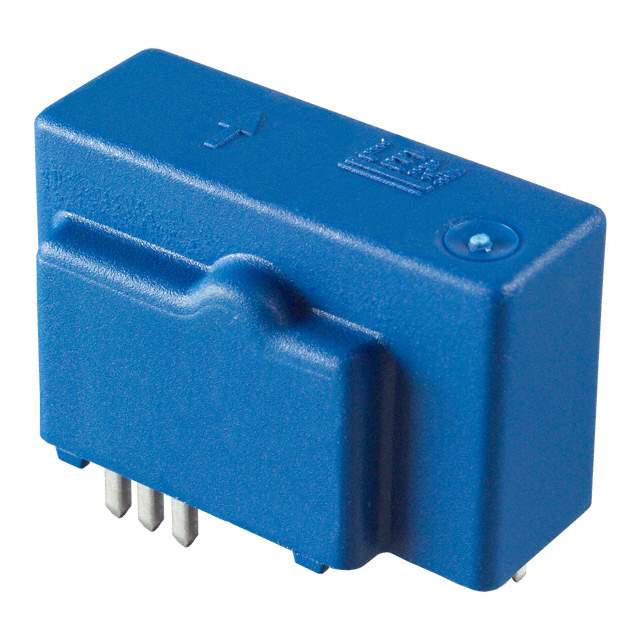

LAH 100-P Real Image
Same model may have multiple batches, images only for reference.

LAH 100-P

Part No LAH 100-P
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Datasheet
LAH 100-P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series LAH
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Current
Frequency DC ~ 200kHz
Linearity ±0.15%
Accuracy ±0.25%
Operating Supply Voltage ±12 V ~ 15 V
Response Time 0.5μs
Maximum Supply Current 60mA
Operating Temperature Range -25°C ~ 85°C
Polarization Bidirectional
Mounting Style Through Hole
Win Source Part Number 778280-LAH 100-P
Popularity Medium
Supply and Demand Status Limited
Quantity per package 12
Ultra Librarian 3D Model Ultra Librarian LAH 100-P CAD Model

Description

The LEM USA Inc. LAH 100-P series sensor is manufactured by LEM USA Inc. and is designed for measuring AC/DC current.

  • Sensor Type: Closed Loop Hall Effect
  • Polarization: Bidirectional
  • Sensitivity: 100A
  • Accuracy: ±0.25%
  • Response Time: 0.5μs
  • Frequency Range: DC ~ 200kHz
  • Output: Ratiometric, Current
  • Shielded: Yes
  • Maximum Supply Current: 60mA
  • Mounting: Through Hole
  • Temperature Range: -25°C ~ 85°C
