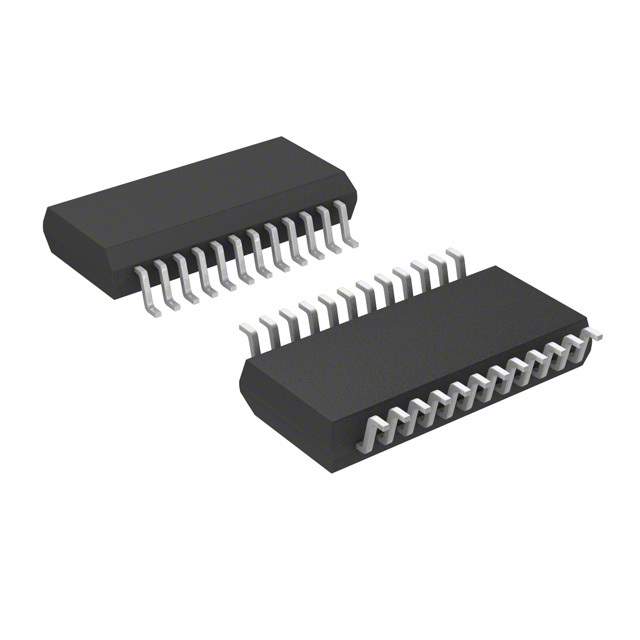

ACS726LLFTR-20B-T Real Image
Same model may have multiple batches, images only for reference.

ACS726LLFTR-20B-T

Part No ACS726LLFTR-20B-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 20A AC/DC
Datasheet
ACS726LLFTR-20B-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 7 Weeks
Features Current Sensor 20A 1 Channel Hall Effect, Open Loop Bidirectional 24-SSOP (0.154", 3.90mm Width)
Manufacturer Allegro MicroSystems, LLC
Package Reel - TR
Operating Temperature Range -40°C ~ 150°C
Mounting Surface Mount
Package 24-SSOP (0.154", 3.90mm Width)
Case / Package 24-QSOP
Family Name ACS726
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 620-1648-6, ACS726LLFTR-20AB-T, 620-1648-2, 620-1648-1
Quantity per package 7500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 859352-ACS726LLFTR-20B-T
Ultra Librarian 3D Model Ultra Librarian ACS726LLFTR-20B-T CAD Model

Description

The ACS726LLFTR-20B-T is a current sensor that is designed for use in electronic devices that require precise current control. Allegro MicroSystems manufactures it.

  • Current: 20A
  • Channel: 1 channel Hall effect
  • Loop: Open loop bidirectional
  • Package: 24-SSOP (0.154", 3.90mm Width)
  • Temperature Range: -40°C to 150°C
  • Supply and Demand Status: Limited
  • Package Quantity: 7500
  • MSL Level: 2 (shelf life of one year)
