Linear Technology's LT1129CST-5#PBF Low Dropout Voltage Regulator

The LT1129CST-5#PBF is a high-performance, low dropout voltage regulator from Linear Technology, designed to deliver a continuous output current of up to 700mA with an adjustable output from 3.8V to 20V. This regulator is specifically engineered to maintain a consistent output voltage with a minimal input-to-output voltage differential, making it ideal for battery-powered systems where extended battery life is crucial.

Constructed with an advanced design, the LT1129CST-5#PBF features a low quiescent current of only 85µA, which reduces to less than 10µA in shutdown mode. This significantly enhances the power efficiency of the device, especially in standby or low-power states, preserving battery life in portable applications. The device's low dropout voltage of just 0.4V at full load ensures stable operation even when the input voltage is close to the output voltage, which is particularly beneficial during battery discharge cycles.

With built-in protection features such as overcurrent and overtemperature protection, the LT1129CST-5#PBF ensures reliable performance under various operating conditions. The thermal protection circuitry automatically shuts down the regulator to prevent damage if the internal temperature exceeds safe limits.

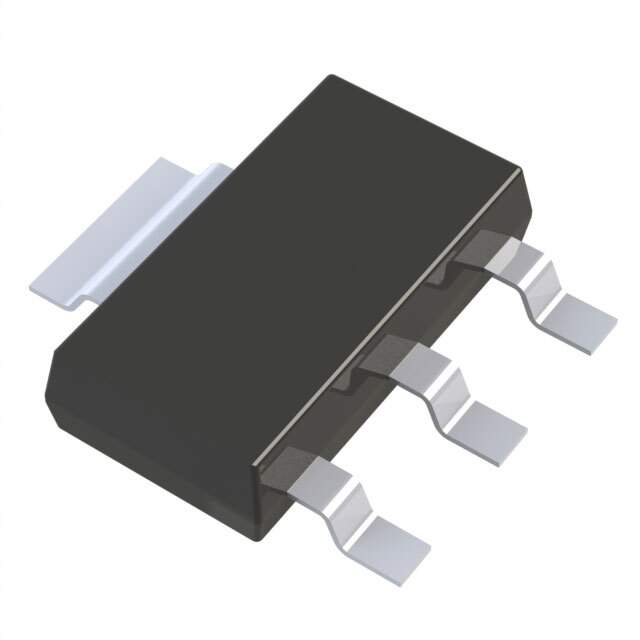

The regulator is packaged in a thermally efficient 3-lead SOT-223 package, which provides an optimal balance between a small footprint and good thermal performance. This makes the LT1129CST-5#PBF suitable for space-constrained applications while still being capable of dissipating the heat generated during operation.

Applications for the LT1129CST-5#PBF are diverse and include portable computing devices, battery-powered equipment, and industrial power supplies. Its robust design and low power consumption make it an excellent choice for designers looking to optimize power management in their systems.

Overall, the LT1129CST-5#PBF from Linear Technology stands out as a reliable and efficient voltage regulator solution, offering a combination of low dropout performance, power-saving features, and protection mechanisms to meet the stringent requirements of modern electronic devices.
