Product Overview: LT1585ACT#PBF

The LT1585ACT#PBF is a high-performance, low dropout (LDO) linear regulator from Linear Technology, designed to provide precision voltage regulation with a minimal voltage drop across the device. This component is well-suited for applications that require a stable and reliable power supply, such as in high-end computing systems, telecommunications equipment, and industrial hardware.

Key Features

• Output Voltage: The LT1585ACT#PBF offers an adjustable output voltage from 1.25V to 7V, allowing for flexible use in a variety of circuit designs.
• High Current Capability: It is capable of delivering up to 4.6A of continuous output current, making it suitable for powering heavy loads.
• Low Dropout Voltage: With a low dropout voltage of typically 1.5V at full load, it ensures efficient operation even when the input voltage is close to the output voltage.
• Excellent Regulation: The device features excellent line and load regulation characteristics, maintaining a stable output despite variations in input voltage and load.
• Thermal Protection: It includes built-in thermal protection that automatically shuts down the regulator to prevent damage from overheating.
• Safe Area Protection: The LT1585ACT#PBF incorporates safe area protection, enhancing its reliability by limiting the output current in the event of a fault condition.

Applications

The versatile nature of the LT1585ACT#PBF makes it ideal for a broad range of applications, including but not limited to:

• High-efficiency linear power supplies
• Post-regulation for switching power supplies
• Microprocessor supply
• Battery-powered devices
• Adjustable power supplies

Quality and Reliability

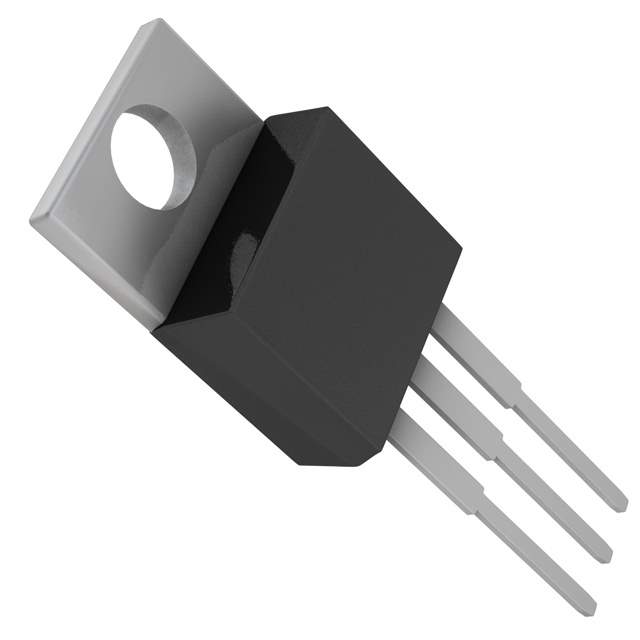

Linear Technology is known for its commitment to quality, and the LT1585ACT#PBF is no exception. It is packaged in a TO-220 form factor, which is known for its robustness and ability to dissipate heat effectively. The part number suffix 'PBF' indicates that it is lead-free and RoHS compliant, reflecting Linear Technology's dedication to environmental sustainability.

In summary, the LT1585ACT#PBF from Linear Technology is a reliable and versatile LDO regulator that offers high current capability, low dropout performance, and excellent regulation, making it an ideal choice for a wide range of power supply applications.
