The LT3013BEDE#PBF is a high-performance, low dropout micropower linear regulator designed by Linear Technology, which offers exceptional functionality and efficiency for a wide range of applications. This regulator is capable of delivering up to 250mA of continuous output current with a dropout voltage of only 300mV at full load, making it an excellent choice for battery-powered devices where power efficiency is critical.

Key Features:

• Wide Input Voltage Range: The device can operate with an input voltage range from 3V to 80V, providing versatility in various application environments.
• Low Dropout Voltage: The low dropout voltage of 300mV at full load helps in maintaining regulation even when the input supply is close to the output voltage.
• Adjustable Output: The output voltage is adjustable from 1.24V up to 60V, which allows for a broad range of output voltages to suit specific requirements.
• Low Quiescent Current: With a quiescent current of just 30μA (operating) and 3μA in shutdown, the LT3013BEDE#PBF is optimized for battery-powered and energy-saving applications.
• Thermal Protection: The device includes internal thermal limit protection, which safeguards the regulator and the overall system from overheating.
• Stable with Low ESR Capacitors: The LT3013BEDE#PBF remains stable with ceramic capacitors, which are smaller, more reliable, and have lower equivalent series resistance (ESR) than other types.

Applications:

The LT3013BEDE#PBF is ideal for a variety of applications, including automotive power supplies, industrial controls, avionics, and portable battery-powered electronics. Its robustness and reliability also make it well-suited for harsh environments where supply voltages can vary widely.

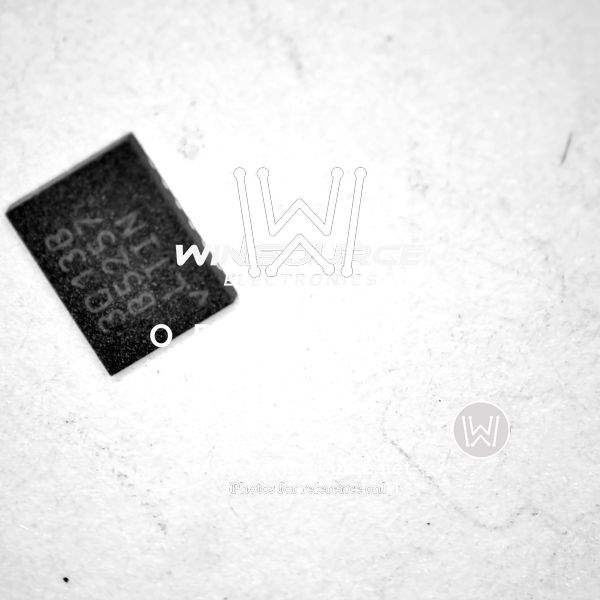

With its compact 12-lead DFN package, the LT3013BEDE#PBF offers a space-efficient solution for modern electronic designs, while providing the performance and flexibility that engineers need to create stable and efficient power supply circuits.
