LT3021EDH-1.2#PBF - Low Dropout Linear Regulator

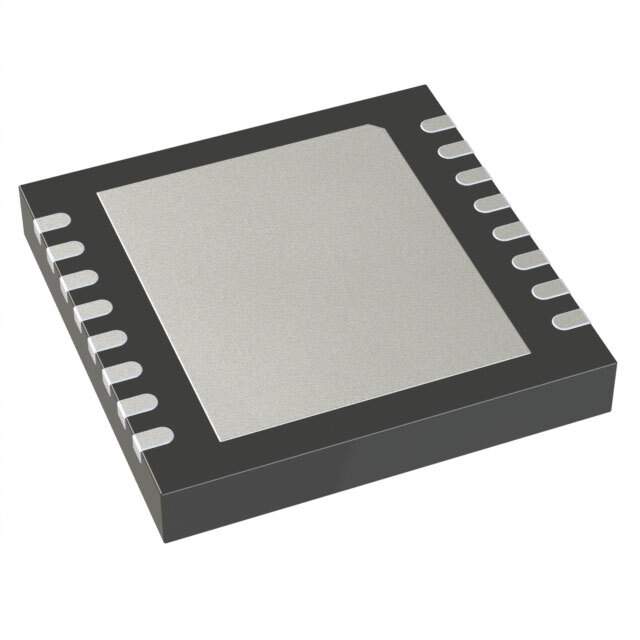

The LT3021EDH-1.2#PBF is a high-performance, low dropout linear regulator (LDO) designed and manufactured by Linear Technology, a brand of Analog Devices. This LDO is tailored to deliver a fixed output voltage of 1.2V, which is ideal for precise power regulation in sensitive electronic applications. The device comes in a compact 8-lead 2mm x 3mm DFN package, providing an efficient solution for space-constrained applications.

Key Features

• Stable Output: The LT3021 provides a stable 1.2V output voltage with a high accuracy that ensures reliable performance for critical electronic circuits.
• Low Dropout Voltage: With a very low dropout voltage, the LT3021EDH-1.2#PBF can maintain regulation with minimal difference between the input and output voltages, making it suitable for applications with tight power supplies.
• High Output Current: Capable of delivering up to 500mA of output current, this LDO can power a wide range of devices, from microcontrollers to RF modules.
• Thermal Protection: Integrated thermal shutdown protection prevents damage from overheating, ensuring long-term reliability and safety.
• Low Noise: The LT3021EDH-1.2#PBF boasts low output noise, which is critical for noise-sensitive applications such as RF or audio circuits.
• No Protection Diodes Needed: Internal circuitry eliminates the need for protection diodes, simplifying design and reducing external component count.

Applications

The LT3021EDH-1.2#PBF is versatile and can be used across various applications, including:

• Portable Electronics
• Battery-Powered Equipment
• Microprocessor Supply
• Industrial Supplies
• Automotive Power Systems
• Low Noise Instrumentation

With its robust design and precise voltage regulation, the LT3021EDH-1.2#PBF is a reliable choice for designers looking to optimize power management in their electronic projects. Its performance and compact size make it an excellent option for both new designs and upgrades to existing systems.
