Linear Technology's LT3511EMS#PBF High Voltage Isolated Flyback Converter

The LT3511EMS#PBF is a high-performance isolated flyback converter IC from Linear Technology, designed to simplify the design of an isolated DC/DC converter. With no third winding or opto-isolator required for regulation, it offers a compact solution for applications requiring isolated power delivery.

This versatile IC operates over a wide input voltage range of 4.5V to 100V, making it suitable for a variety of industrial, automotive, medical, and telecommunications power supply applications. The LT3511EMS#PBF can deliver a power output of up to several watts, depending on the configuration, with output voltages that can be set by the transformer turns ratio and external components.

One of the key features of the LT3511EMS#PBF is its integrated 420mA, 150V power switch, which allows for efficient operation and reduces the need for external components. The device also includes a high-voltage startup circuit, ensuring quick system start-up even from high input voltages.

The LT3511EMS#PBF offers multiple protection features to ensure the safety and reliability of the power supply. These include input under-voltage lockout, output over-voltage protection, over-temperature protection, and output short-circuit protection. These safeguards help to prevent damage to the IC and the system it powers in adverse conditions.

With its adjustable frequency from 100kHz to 500kHz, designers can optimize the transformer size and efficiency. Additionally, the IC can be synchronized to an external clock, allowing for noise-sensitive applications to minimize electromagnetic interference.

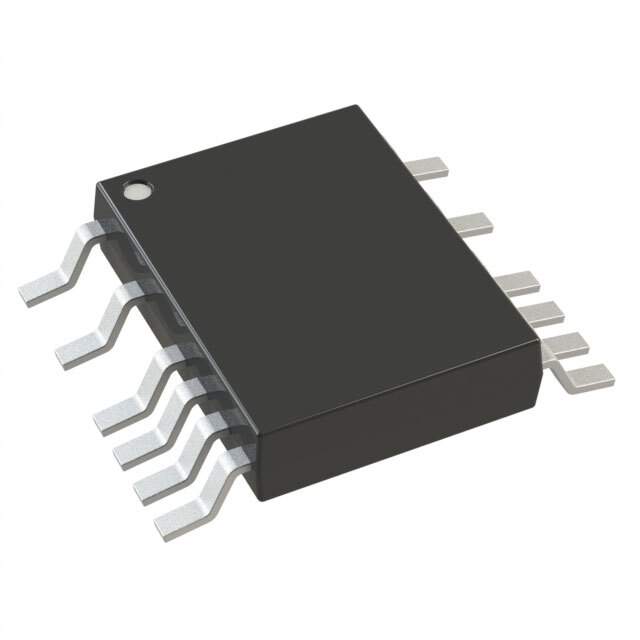

The device is available in a compact 16-lead MSOP package with an exposed pad for improved thermal performance. This feature is particularly important in applications where space is at a premium and thermal management is critical.

In summary, the LT3511EMS#PBF from Linear Technology is a robust, high-voltage isolated flyback converter that provides a simplified solution for generating isolated power supplies. Its wide input voltage range, integrated features, and compact size make it an excellent choice for a broad array of applications.
