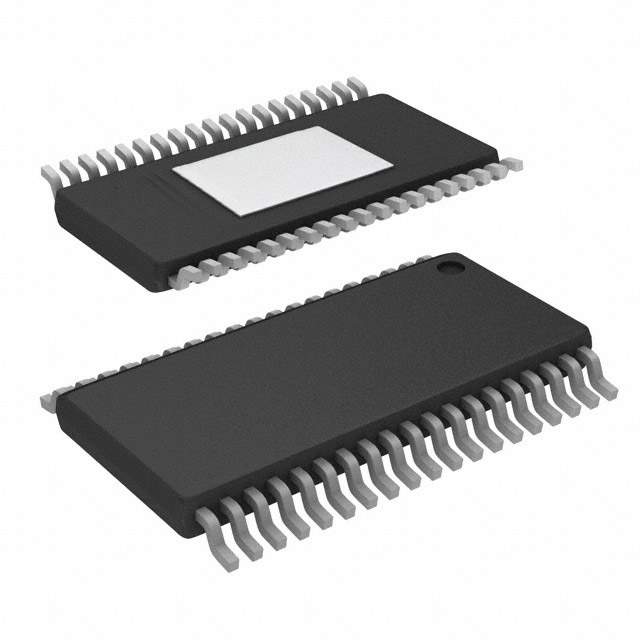

Product Overview: LT3959IFE#PBF

The LT3959IFE#PBF is a versatile and high-performance DC/DC converter IC from Linear Technology, designed to cater to a wide range of power supply applications. This advanced component is capable of generating either positive or negative output voltages, making it an ideal choice for applications that require a dual polarity power supply such as biasing amplifiers, LEDs, and other electronic devices.

Key Features

• Wide Input Voltage Range: The LT3959IFE#PBF operates over a broad input voltage range of 4.5V to 40V, allowing it to accommodate various power sources, including single-cell Li-Ion to multi-cell battery configurations or automotive inputs.
• Adjustable and Fixed Frequency Operation: This converter can be programmed to operate at a fixed frequency between 100kHz to 1MHz or can be synchronized to an external clock, providing flexibility in minimizing interference with sensitive RF or audio circuitry.
• Boost, Buck-Boost, and SEPIC Topologies: The IC supports multiple converter topologies, including boost, buck-boost, and Single-Ended Primary-Inductor Converter (SEPIC), enabling designers to utilize it in various circuit configurations.
• Integrated Fault Protection: The device includes features such as overvoltage protection, overcurrent protection, and thermal shutdown, ensuring reliable operation under abnormal conditions.
• Programmable Soft-Start: To reduce inrush current and provide a controlled startup, the LT3959IFE#PBF includes a programmable soft-start function.

Applications

The LT3959IFE#PBF is suitable for a multitude of applications, including but not limited to:

• Automotive and Industrial Power Systems
• Gate Drive Supplies
• Power Amplifiers
• LED Drivers
• Portable Devices

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LT3959IFE#PBF is no exception. It is manufactured to the highest standards to ensure consistent performance and reliability across a wide temperature range, making it suitable for demanding environments.
