Product Overview: LT8500IUHH#PBF

The LT8500IUHH#PBF is a cutting-edge pulse width modulation (PWM) generator from Linear Technology, designed to cater to the demanding needs of LED lighting and illumination systems. This high-performance integrated circuit (IC) is optimized to deliver precise control and efficiency in a variety of applications, ranging from automotive and architectural lighting to industrial and decorative LED setups.

Key Features

• 48-Channel PWM Outputs: The LT8500IUHH#PBF boasts 48 independent PWM outputs, each capable of driving LED currents with exceptional accuracy and minimal cross-talk, ensuring uniform brightness and color consistency across multiple channels.
• 12-Bit (4096 Steps) Grayscale PWM Dimming: With its 12-bit resolution, the device offers fine granularity in dimming control, enabling smooth transitions and subtle light intensity variations that are critical for advanced lighting effects and professional applications.
• Serial Interface: The inclusion of a serial interface allows for easy communication with microcontrollers or processors, simplifying the integration of the LT8500IUHH#PBF into complex systems and enabling the use of custom control algorithms.
• Phase Shifted PWM: This feature allows users to minimize audible noise and electromagnetic interference (EMI) by phase shifting the PWM signals between channels, which is particularly beneficial in noise-sensitive environments.

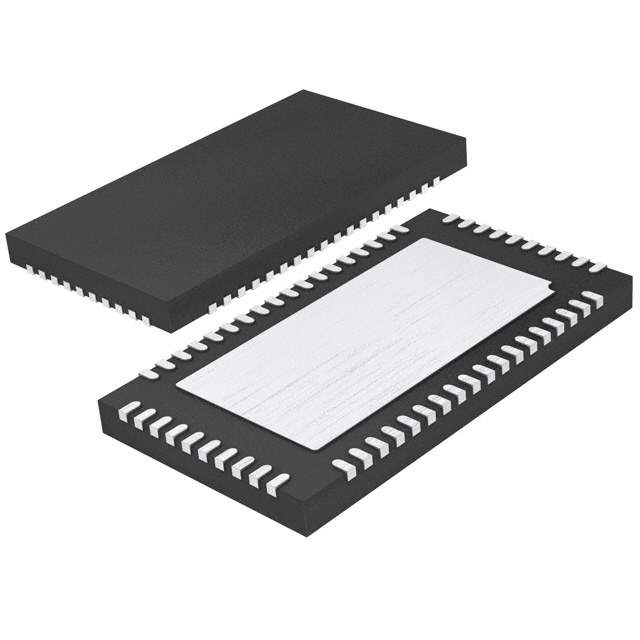

• Robust Thermal Performance: Housed in a QFN package, the LT8500IUHH#PBF is designed to maintain its performance across a wide temperature range, ensuring reliable operation under varying environmental conditions.

Applications

• Automotive and Avionics Lighting
• Architectural and Ambient Lighting
• Commercial and Industrial LED Systems
• RGB and Adaptive Lighting Solutions
• Backlighting for LCD Displays

The LT8500IUHH#PBF is a testament to Linear Technology's commitment to providing advanced solutions for the ever-evolving LED lighting industry. Its robust feature set and versatility make it an ideal choice for designers looking to push the boundaries of what's possible with LED illumination technology.
