Product Overview: LTC2234CUK#TRPBF

The LTC2234CUK#TRPBF is a high-performance, low-power 10-bit, 105Msps analog-to-digital converter (ADC) from Linear Technology, now part of Analog Devices. This compact, efficient component is designed to meet the rigorous demands of advanced digital signal processing (DSP) applications such as medical imaging, telecommunications, and industrial data acquisition systems.

Key Features

• Resolution: The ADC offers a 10-bit resolution, providing precise digital representation of the input signal.
• Sampling Rate: With a sampling rate of 105Msps (Mega samples per second), the LTC2234CUK#TRPBF can accurately digitize high-frequency signals.
• Low Power Consumption: It is designed for power-sensitive applications, consuming only 80mW of power, which is ideal for portable and battery-powered devices.
• Single 3.3V Supply: The device operates on a single 3.3V supply, simplifying the power supply design and reducing system complexity.
• Flexible Input Range: The ADC features an input range of 1Vp-p to 2Vp-p, allowing it to accommodate a variety of signal amplitudes.
• Shutdown and Nap Modes: To further conserve power, the LTC2234CUK#TRPBF includes shutdown and nap modes, reducing power consumption when the ADC is not in active use.

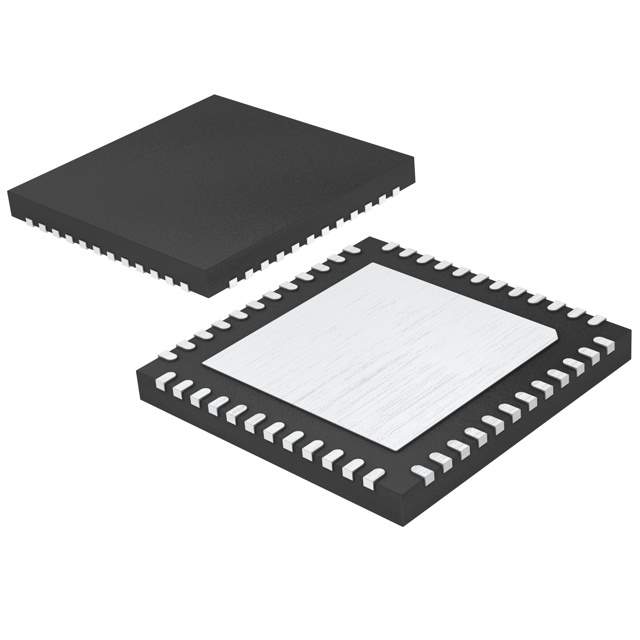

• Small Form Factor: Housed in a 7mm x 4mm QFN package, this ADC saves precious board space, making it suitable for compact system designs.
• CMOS Output Interface: The device provides a parallel CMOS output interface, ensuring easy integration with most digital systems.

Applications

The LTC2234CUK#TRPBF is versatile and can be used in a wide array of applications, including:

• Medical Imaging Systems
• Wireless and Wired Broadband Communications
• Industrial Process Control and Automation
• High-speed Data Acquisition Systems
• Radar and Satellite Communication Systems

Linear Technology's commitment to high-quality and performance is evident in the LTC2234CUK#TRPBF ADC, making it a reliable choice for engineers and designers looking for a robust data conversion solution. With its high sample rate, low power consumption, and compact size, this ADC is poised to enhance the performance and efficiency of a wide range of electronic systems.
