The LTC3115EFE-1#PBF is a high-performance, versatile monolithic synchronous buck-boost converter from Linear Technology, designed to manage wide input voltage variations with high efficiency. This advanced power solution is ideal for applications that must operate across a wide range of battery voltages or from unpredictable power sources.

Key Features

• Wide Input Voltage Range: It operates with an input voltage range of 2.7V to 40V, making it suitable for applications powered by single-cell Li-Ion to multi-cell battery stacks, automotive inputs, industrial power supplies, and solar panels.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to VIN, providing flexibility for various design requirements.
• High Efficiency: With up to 95% efficiency, this converter maximizes battery life and reduces heat dissipation, making it an energy-efficient choice for portable and battery-powered systems.
• Programmable Switching Frequency: The switching frequency is programmable from 100kHz to 2MHz, allowing designers to optimize the size of external components and avoid critical noise-sensitive frequency bands.

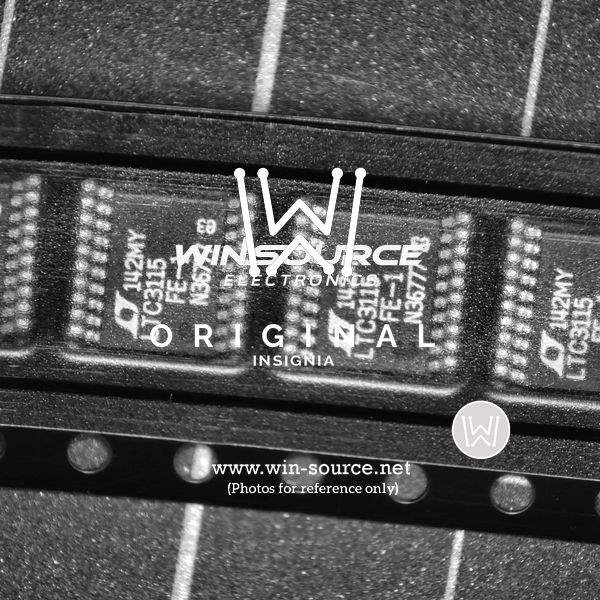

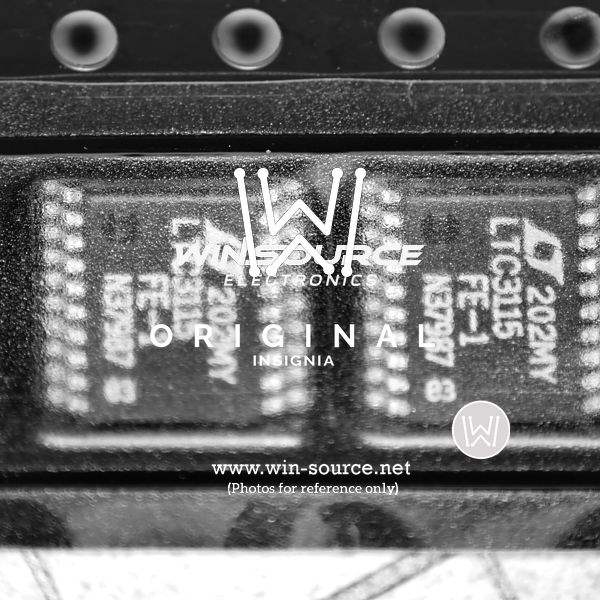

• Robust Thermal Performance: The LTC3115EFE-1#PBF comes in a thermally enhanced 20-lead TSSOP package, which provides excellent thermal performance and reliability under various operating conditions.

Applications

This converter is ideal for a broad range of applications, including but not limited to:

• Portable and battery-powered equipment
• Automotive and industrial power systems
• Uninterruptible power supplies (UPS)
• Power conditioning for solar panels

Integration and Protection

The LTC3115EFE-1#PBF incorporates several features to ensure smooth integration and protection of the end application. It includes soft-start capability, short-circuit protection, over-temperature protection, and a low-battery detector. These features, combined with its wide input and output voltage capabilities, make it a robust and flexible solution for managing power in challenging environments.

With its advanced design and comprehensive feature set, the LTC3115EFE-1#PBF is a superior choice for designers looking for a reliable, high-efficiency power converter that can handle a diverse range of power supply challenges.
