Product Overview: LTC3216EDE#TRPBF

The LTC3216EDE#TRPBF is a highly integrated, efficient, and versatile LED driver manufactured by Linear Technology, designed to cater to the needs of portable lighting applications. This compact and feature-rich component is ideal for driving multiple LEDs with precise current control, making it an excellent choice for mobile phones, digital cameras, and other handheld devices that require uniform and bright illumination for their features such as flash and backlighting.

Key Features

• High Efficiency: The LTC3216EDE#TRPBF boasts a high efficiency of up to 94%, ensuring minimal power loss and extended battery life in portable applications.
• Adjustable Output Current: Users can adjust the output current from 250mA to 1000mA, allowing for flexible control over the brightness of the connected LEDs.
• Charge Pump Technology: This device utilizes 1x/1.5x/2x fractional charge pump modes, which adapt to the varying LED forward voltage requirements, ensuring consistent performance and maximizing efficiency.
• Thermal Protection: The built-in thermal protection feature safeguards the device from overheating, thus enhancing its reliability and lifespan.

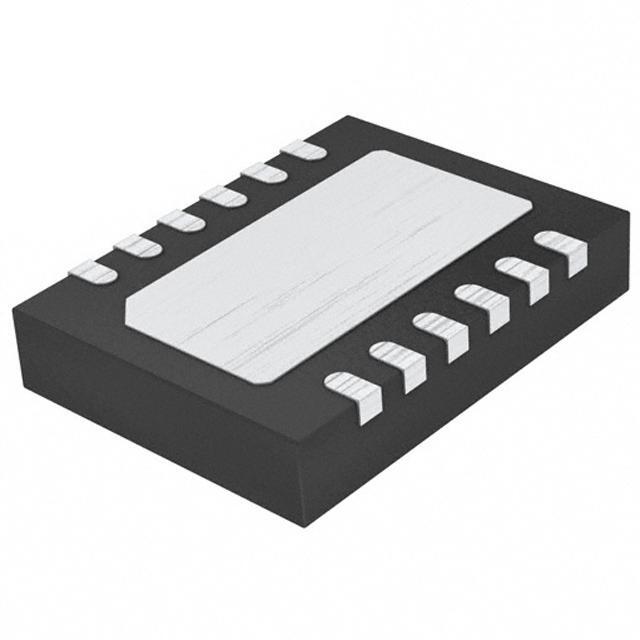

• Compact Design: Housed in a low-profile (0.75mm) 3mm x 3mm DFN package, the LTC3216EDE#TRPBF is designed to fit into the tightest spaces, perfect for space-constrained applications.

Applications

The versatile nature of the LTC3216EDE#TRPBF makes it suitable for a range of lighting applications, including:

• LED Flash for Digital Cameras and Camera Phones
• LED Backlighting for LCD Displays
• Portable Emergency Lighting
• General Purpose LED Illumination

Quality and Reliability

Linear Technology ensures that the LTC3216EDE#TRPBF meets the highest quality and reliability standards. The product is available in a RoHS-compliant package, adhering to environmental regulations. Its high-quality design and robust construction make it a reliable choice for designers looking to incorporate a durable LED driver into their portable applications.

In summary, the LTC3216EDE#TRPBF from Linear Technology is a high-efficiency, adjustable, and thermally protected LED driver solution that is perfect for a wide array of portable lighting applications. Its compact footprint, combined with its high performance and adaptability, makes it an essential component for modern electronic devices requiring high-quality illumination.
