LTC3220IPF-1#PBF - LED Driver IC by Linear Technology

The LTC3220IPF-1#PBF is a versatile and efficient inductorless LED driver integrated circuit (IC) produced by Linear Technology, a company known for its high-performance analog integrated circuits. This particular LED driver is designed to provide a constant current to up to 18 LEDs, which makes it an ideal solution for portable applications where space is at a premium and efficient power management is crucial.

The device operates with an input voltage range from 2.8V to 4.5V, making it suitable for use with single-cell lithium-ion batteries or other standard power sources. The LTC3220IPF-1#PBF employs a charge pump to efficiently control the LED current, which can be set via an external resistor. This flexibility allows designers to adjust the brightness of the LEDs to the desired level.

One of the key features of this LED driver is its 1x, 1.5x, or 2x fractional charge pump modes, which automatically optimize efficiency based on the voltage difference between the input and the LED forward voltages. This ensures that the device operates with the highest efficiency possible, thereby extending battery life in portable applications.

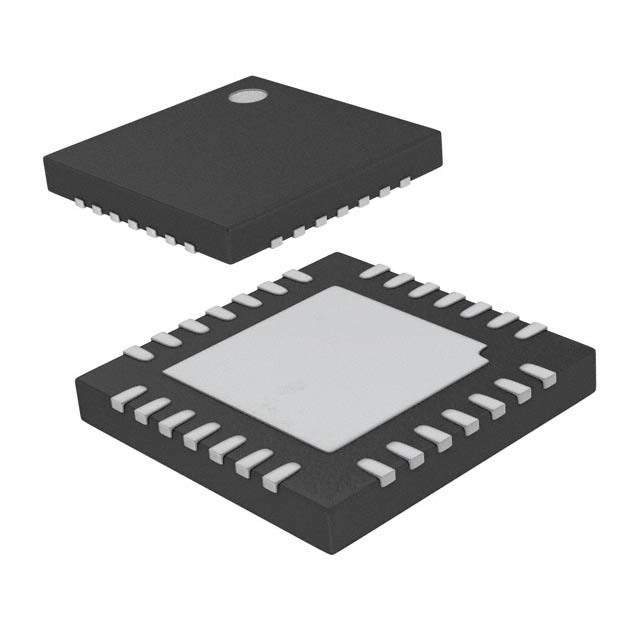

The LTC3220IPF-1#PBF also includes built-in over-temperature protection and a low-battery detector, which ensures safe operation under a variety of conditions. The device is available in a compact 4mm x 4mm QFN package, which minimizes the footprint on the PCB and is ideal for space-constrained applications such as cell phones, PDAs, digital cameras, and other handheld devices.

Furthermore, the IC allows for easy control of the LED current through a simple interface, and it can support a variety of LED configurations. The driver can be programmed to operate in automatic mode, where it adjusts the charge pump gain as needed, or in manual mode, where the gain is set by the user.

In summary, the LTC3220IPF-1#PBF from Linear Technology is a highly integrated and efficient solution for driving multiple LEDs in portable devices. Its small size, programmable current, and automatic mode selection make it a versatile and reliable choice for designers looking to enhance the visual output of their battery-powered applications.
