LTC3300IUK-1#PBF High Efficiency Bidirectional Multicell Battery Balancer

The LTC3300IUK-1#PBF is a high-performance integrated circuit from Linear Technology, designed to balance multicell battery stacks for applications requiring precise voltage regulation and optimal battery health and longevity. This advanced product is crucial for managing battery systems in electric vehicles, energy storage systems, and backup power applications where multiple cells are connected in series to achieve higher voltage levels.

Featuring a bidirectional synchronous flyback topology, the LTC3300IUK-1#PBF efficiently transfers charge from higher voltage cells to lower voltage cells or vice versa, ensuring that all cells in the stack maintain the same state of charge. This active balancing technique significantly improves battery performance and lifespan compared to passive balancing methods.

The device is capable of balancing up to 12 cells connected in series, with an absolute maximum input voltage of 60V. It can be used with a wide range of battery chemistries, including Lithium-Ion, Lithium Polymer, and Lithium Iron Phosphate. The LTC3300IUK-1#PBF operates with an external transformer, and its bidirectional operation allows for the charge to be transferred in either direction, depending on the needs of the individual cells, which is essential for maintaining balance in the battery stack over time.

Key features of the LTC3300IUK-1#PBF include its high efficiency, which minimizes heat generation and power loss, and its ability to provide real-time monitoring and diagnostics, which is critical for ensuring the safety and reliability of the battery system. The device also includes protection features such as overvoltage, undervoltage, and overtemperature protection, which safeguard the battery stack from extreme operating conditions.

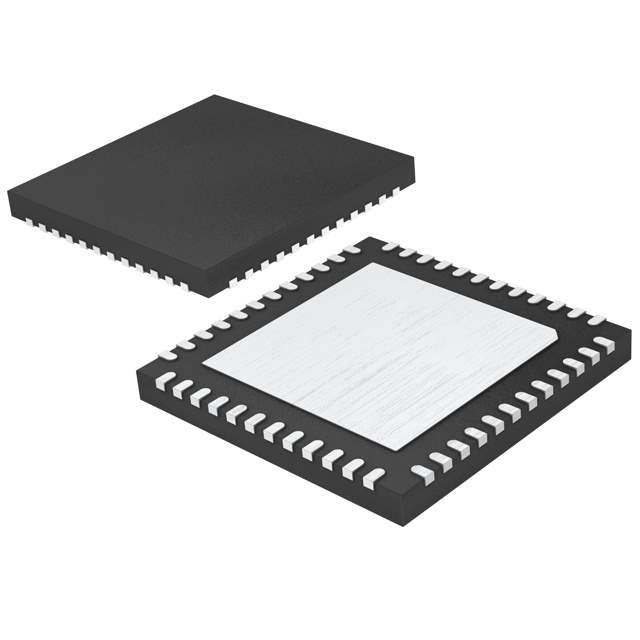

Designed with a compact footprint, the LTC3300IUK-1#PBF comes in a QFN package that is suitable for space-constrained applications. Its robust design and advanced functionality make it an ideal solution for engineers looking to enhance the performance and reliability of their multicell battery systems.

In summary, the LTC3300IUK-1#PBF from Linear Technology is an essential component for any application that relies on a series-connected multicell battery stack, providing efficient, reliable, and safe operation across a broad range of battery chemistries and applications.
