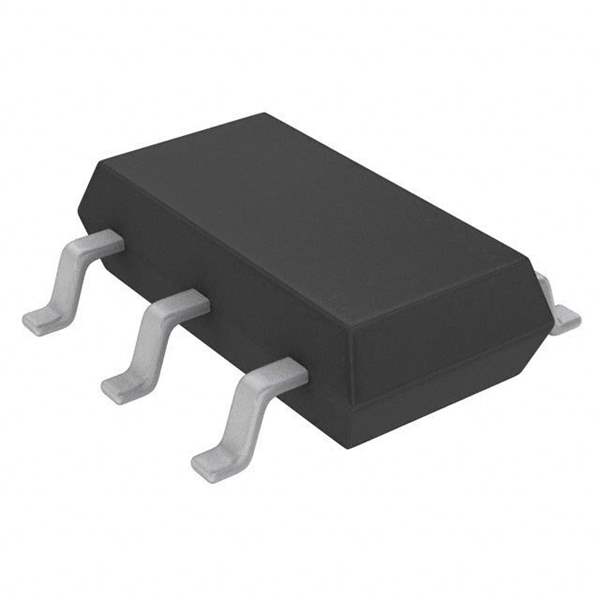

Linear Technology LTC3405AES6#TR - High-Efficiency, Synchronous Step-Down Regulator

The LTC3405AES6#TR is a high-performance, synchronous step-down regulator from Linear Technology, designed to deliver continuous output currents up to 300mA. This compact and efficient power management solution is housed in a space-saving SOT-23 package, making it an ideal choice for portable and battery-powered applications where size and efficiency are critical.

The regulator operates over a wide input voltage range from 2.5V to 5.5V, which allows it to be used with a variety of power sources including single-cell lithium-ion batteries, 3-cell NiMH, or regulated 5V supplies. The LTC3405AES6#TR provides an adjustable output voltage from 0.6V to VIN, which can be set by an external resistor divider, giving designers the flexibility to tailor the output to their specific needs.

Featuring a high switching frequency of up to 2.25MHz, the LTC3405AES6#TR enables the use of small, low-cost capacitors and inductors. This high-frequency operation also allows for a fast transient response, which is essential for powering modern digital devices that have rapidly changing load requirements.

The LTC3405AES6#TR incorporates internal synchronous rectification, which enhances efficiency by reducing power loss in the output rectifier stage. This is particularly advantageous during light-load conditions, where efficiency is often compromised in non-synchronous designs. The device also has a low quiescent current, further improving battery life in portable applications.

Additional features of the LTC3405AES6#TR include a Burst Mode operation that provides high efficiency at low output currents, a shutdown mode that reduces the supply current to less than 1μA, and thermal shutdown for protection against excessive temperature. The device also provides over-current protection, ensuring robust performance under a wide range of operating conditions.

Overall, the LTC3405AES6#TR from Linear Technology is a versatile and efficient solution for space-constrained applications requiring a high-quality power supply. Its combination of high-efficiency operation, adjustable output, and comprehensive protection features makes it an excellent choice for designers looking to optimize their power management systems.
