Linear Technology LTC3417AEDHC-2#PBF Dual Synchronous Step-Down DC/DC Converter

The LTC3417AEDHC-2#PBF is a high-performance, dual-channel synchronous step-down DC/DC converter produced by Linear Technology, a renowned leader in the design and manufacture of high-performance analog integrated circuits. This advanced power management component is specifically engineered to cater to the stringent power requirements of modern portable and compact electronic devices.

Key Features:

• Wide Input Voltage Range: The LTC3417AEDHC-2#PBF operates from a 2.25V to 5.5V input voltage range, making it suitable for single-cell Li-Ion, multi-cell alkaline, or NiMH applications, as well as for standard 3.3V and 5V power rails.
• Dual Independent Outputs: It features two independent outputs that can deliver up to 800mA of continuous output current each, allowing for versatile power delivery configurations.
• High Efficiency: With up to 95% efficiency and Burst Mode® operation, the LTC3417AEDHC-2#PBF ensures extended battery life and minimal heat generation.
• Adjustable Switching Frequency: The switching frequency can be set from 1MHz to 4MHz with an external resistor or synchronized to an external clock, providing design flexibility and optimization of component size and efficiency.
• Low Dropout Operation: The low dropout operation is beneficial for applications requiring maximum efficiency at low input voltages.
• Stable with Low ESR Ceramic Capacitors: Its design is stable with ceramic output capacitors, reducing the need for bulky and expensive tantalum or aluminum electrolytic types.
• Thermal Overload Protection: Built-in thermal overload protection safeguards the device under extreme operating conditions.

Applications:

The LTC3417AEDHC-2#PBF is ideal for a variety of applications including but not limited to:

• Portable Instruments
• Medical Devices
• Wireless Modems
• Handheld Computers
• DSP and Core Supplies

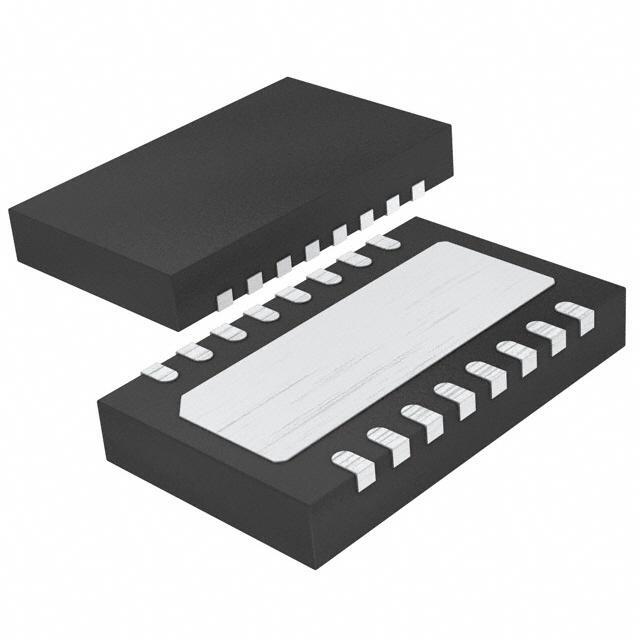

Encased in a compact 16-lead DHC package, the LTC3417AEDHC-2#PBF integrates multiple features that ensure high-performance power conversion with minimal external components. Its robust design and versatile capabilities make it an excellent choice for designers looking to enhance the efficiency and battery life of their portable and space-constrained applications.
