The LTC3421EUF is a high-performance, synchronous step-up DC/DC converter with integrated dual N-channel MOSFETs, produced by Linear Technology. This compact and efficient power solution is designed to meet the demanding requirements of portable electronic devices and other applications where space is at a premium and efficient power conversion is essential.

Key Features

• High Efficiency: The LTC3421EUF boasts a high efficiency of up to 96%, ensuring minimal power loss during the conversion process and extending battery life for portable applications.
• Wide Input Voltage Range: This converter operates over a wide input voltage range from 1.5V to 5.5V, making it versatile for various power sources, including single-cell Li-Ion batteries.
• Adjustable Output Voltage: The output voltage is adjustable from 1.5V up to 5.25V, which allows for a high degree of flexibility in matching the voltage requirements of different loads.
• High Switching Frequency: With a 2.25MHz switching frequency, the LTC3421EUF enables the use of small, low-profile inductors and capacitors, thereby reducing the overall solution footprint.
• Low Shutdown Current: It features a low shutdown current of under 1μA, which contributes to the conservation of battery life when the device is not in use.

Applications

The LTC3421EUF is suitable for a variety of applications, including but not limited to:

• Handheld Instruments
• Portable Media Players
• Wireless and DSL Modems
• GPS Devices
• Medical Devices

Package and Reliability

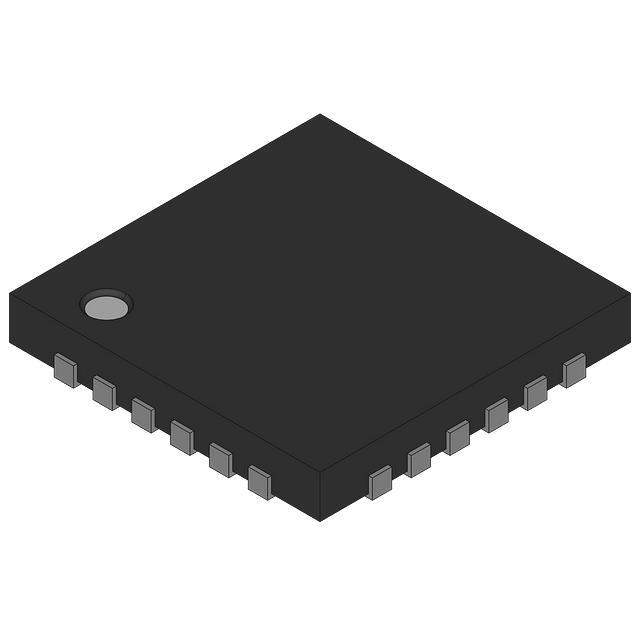

The LTC3421EUF is offered in a compact 16-lead QFN package, ensuring a minimal footprint on the PCB while providing robust thermal performance. Linear Technology's commitment to high-quality manufacturing results in a reliable and durable product that meets the stringent requirements of industrial and consumer electronic devices.

Conclusion

With its high efficiency, wide input voltage range, adjustable output voltage, and compact size, the LTC3421EUF from Linear Technology is an excellent choice for designers looking to maximize performance in space-constrained applications. Its high switching frequency and low shutdown current further enhance its appeal as a leading solution in the power management landscape.
