LTC3525ESC6-3.3#TRMPBF: High-Efficiency Step-Up DC/DC Converter

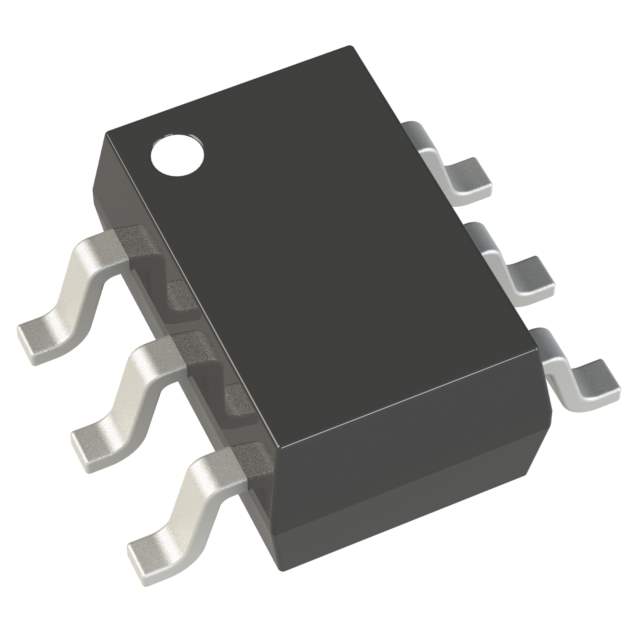

The LTC3525ESC6-3.3#TRMPBF is a compact, high-efficiency, fixed frequency step-up DC/DC converter from Linear Technology, designed to meet the power management requirements of battery-powered systems. This miniature device is housed in a space-saving 6-lead SC-70 package, making it an ideal choice for space-constrained applications such as handheld devices, medical equipment, and wireless sensors.

With an input voltage range of 0.85V to 4.5V, the LTC3525ESC6-3.3#TRMPBF is capable of converting lower voltage levels up to a fixed output voltage of 3.3V, which is suitable for powering devices that require a regulated supply. This feature is particularly useful for products operating on single-cell lithium-ion or multi-cell alkaline/NiMH batteries, where the voltage can vary significantly during discharge.

The device employs a current mode PWM architecture that delivers high power conversion efficiencies up to 95%, minimizing battery drain and extending operating time. Its switching frequency of 1MHz allows the use of small, low-cost capacitors and inductors, further reducing the overall footprint and cost of the power supply design.

One of the key features of the LTC3525ESC6-3.3#TRMPBF is its low quiescent current, which is critical for battery-powered applications where conserving power is paramount. Additionally, the converter includes internal soft-start functionality that limits inrush current during startup, thereby providing a smooth transition to regulation.

Protection features such as thermal shutdown and current limit protect the device and the load from adverse conditions. The LTC3525ESC6-3.3#TRMPBF also includes a shutdown pin that reduces the quiescent current to less than 1µA, further enhancing battery life when the device is not in active operation.

In summary, the LTC3525ESC6-3.3#TRMPBF step-up converter from Linear Technology is a robust, efficient solution for portable and battery-powered applications, offering a fixed output voltage, high efficiency, and a compact form factor. Its ease of integration and low external part count make it an excellent choice for designers looking to optimize their power management solutions.
