Overview of LTC3611EWP#PBF

The LTC3611EWP#PBF is a high-performance, synchronous monolithic step-down switching regulator from Linear Technology. Designed to deliver up to 12A of continuous output current, this device operates over an input voltage range of 4.5V to 24V, making it suitable for a wide array of power supply applications. The LTC3611EWP#PBF is an ideal solution for power distribution systems that require a high level of efficiency, precision, and reliability.

Key Features

• High Efficiency: With its advanced design, the LTC3611EWP#PBF achieves up to 95% efficiency, minimizing heat generation and reducing the need for extensive cooling systems.
• Wide Input Voltage Range: The 4.5V to 24V input voltage range allows for flexibility in various applications, from industrial to automotive power systems.
• Large Output Current: Capable of delivering up to 12A of continuous output current, this product can power demanding circuits and components.
• Adjustable Frequency: Users can set the operating frequency anywhere from 500kHz to 4MHz, enabling optimization for efficiency or component size.
• Low Dropout Operation: The device's strong performance under low voltage differences between input and output ensures stability even during low dropout conditions.
• Robust Protection Features: Includes overvoltage, overcurrent, and over-temperature protection, safeguarding the system against a range of potential faults.

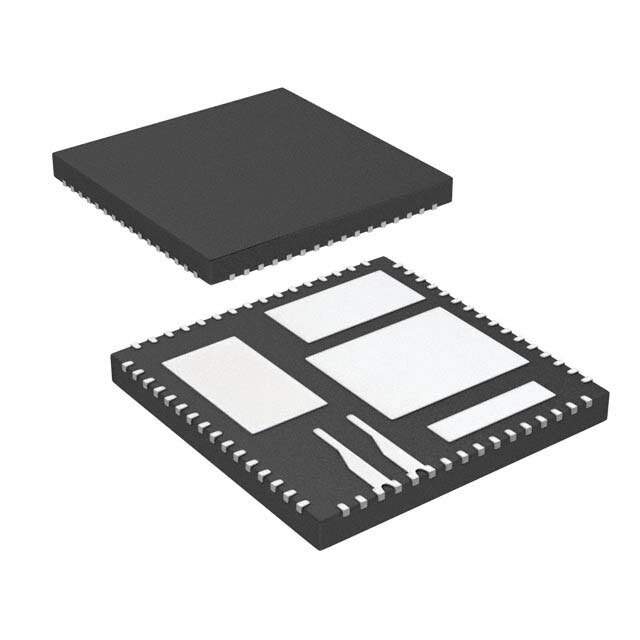

• Thermally Enhanced Package: The LTC3611EWP#PBF is available in a 64-lead QFN package, which provides excellent thermal performance and a compact footprint.

Applications

The LTC3611EWP#PBF is well-suited for a variety of demanding applications, including:

• Telecommunications Infrastructure
• Networking Equipment
• Servers and Storage Systems
• Industrial Power Supplies
• Automotive Power Systems

With its robust feature set and high reliability, the LTC3611EWP#PBF from Linear Technology is an excellent choice for engineers looking to design efficient, high-current power distribution systems.
