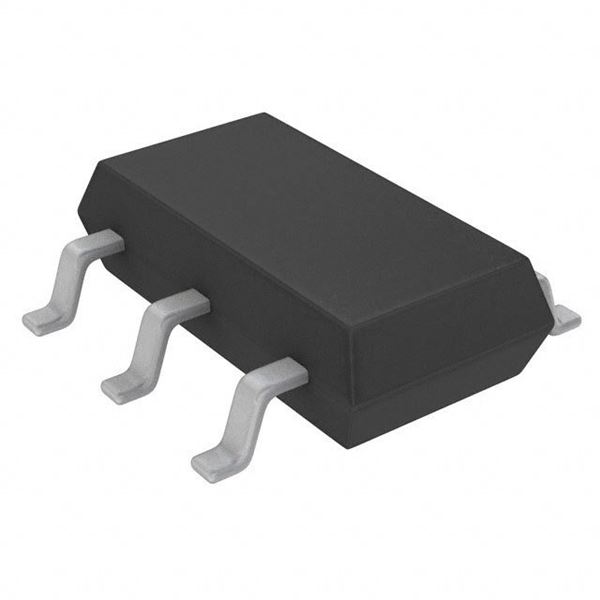

The LTC5532ES6 is a high precision RF (Radio Frequency) power detector that has been designed to meet the demanding requirements of both wireless and communication systems. Manufactured by Linear Technology, a leader in the design and production of integrated circuits, the LTC5532ES6 is a versatile and reliable component for a wide range of applications.
Key Features:
- Frequency Range: The device operates over a broad frequency range from 600MHz to 7GHz, making it suitable for various applications including cellular, PCS, WCDMA, WiMAX, WLAN, and ISM band systems.
- Dynamic Range: With a dynamic range of 40dB, the LTC5532ES6 can detect signal levels from -32dBm to 8dBm, providing precise measurement over a wide range of signal strengths.
- Temperature Compensated: The RF power detector is temperature compensated, ensuring stable performance across its specified temperature range of -40°C to 85°C.
- Low Supply Voltage: The device operates from a single 2.7V to 6V supply, making it compatible with a variety of power sources and systems.
- Low Power Consumption: The LTC5532ES6 is optimized for low power consumption, drawing typically only 1uA of quiescent current, which is ideal for battery-powered applications.
- Package: It comes in a compact SOT-23 package, specifically the 6-lead SOT-23 package, which is suitable for space-constrained applications.
Applications:
The LTC5532ES6 is designed for use in RF power measurement and control applications within communication and sensor systems. Its applications span across signal strength detection for transmitters and receivers, power amplifier control, transmitter power monitoring, and antenna alignment for optimal signal transmission and reception.
Conclusion:
With its wide frequency range, high dynamic range, and low power consumption, the LTC5532ES6 RF power detector from Linear Technology stands out as a highly efficient and versatile component for any RF application. Its compact size and temperature stability make it a reliable choice for designers looking to enhance their wireless communication systems.
