Overview of LTC6256CKC#TRPBF

The LTC6256CKC#TRPBF is a high-performance, low-power operational amplifier from Linear Technology, designed to cater to a wide range of applications requiring precision and efficiency. This op-amp is part of Linear Technology's LTC6256 series, known for its low noise, low power, and high-speed characteristics, making it an ideal choice for battery-powered systems, portable devices, and other applications where power efficiency is critical.

Key Features

• Low Power Consumption: The LTC6256CKC#TRPBF is designed for power-sensitive applications, with a low supply current that helps extend battery life in portable devices.
• Wide Supply Voltage Range: It operates from a supply voltage range of 1.8V to 5.25V, accommodating various power supply configurations and ensuring compatibility with both single and dual supply operations.
• High Output Drive: Despite its low power consumption, this op-amp can drive heavy loads, making it versatile for different output requirements.
• Rail-to-Rail Output: The device features rail-to-rail output swing, which provides the maximum possible dynamic range at the output, especially useful in low-voltage applications.
• Low Input Bias Current: It has a low input bias current, thereby reducing errors in applications with high source impedances.
• Stable with Low Capacitive Loads: The LTC6256CKC#TRPBF remains stable even with capacitive loads, ensuring reliable performance in a variety of circuits.

Applications

• Portable Medical Devices
• Low Power Battery-Operated Equipment
• Sensor Signal Conditioning
• Data Acquisition Systems
• Active Filters
• Buffer Amplifiers

Quality and Reliability

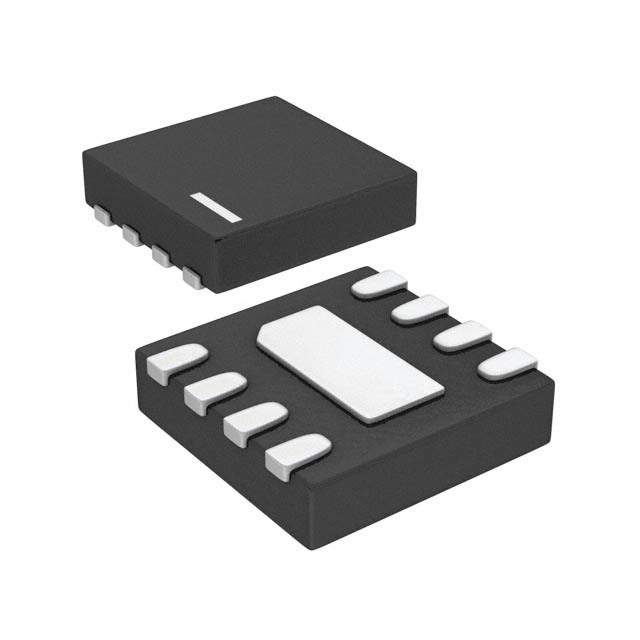

The LTC6256CKC#TRPBF is manufactured by Linear Technology, a company known for its commitment to quality and reliability. The operational amplifier is available in a small, 2mm x 3mm DFN package, which is suitable for space-constrained applications. It is also available in a TSOT-23 package. This product is RoHS compliant and is designed to meet the stringent requirements of industrial and automotive temperature ranges, ensuring robust performance across various environmental conditions.

In summary, the LTC6256CKC#TRPBF from Linear Technology is a versatile, high-performance operational amplifier that offers an excellent balance of power efficiency and functional robustness, making it a top choice for designers looking to optimize their systems for both performance and power consumption.
