Introducing the LTM2892IY-S#PBF from Linear Technology

The LTM2892IY-S#PBF is a high-performance, isolated μModule transceiver that provides a complete galvanic isolation solution for digital data communication. Designed and manufactured by Linear Technology, a leader in analog and mixed-signal semiconductor products, this device is a testament to the company's commitment to innovation and reliability in the field of electrical isolation.

Key Features

• Galvanic Isolation: The LTM2892IY-S#PBF offers up to 2500V<sub>RMS of isolation for one minute, ensuring that sensitive components are protected from high voltage spikes and common-mode noise.
• Integrated Power: This transceiver comes with an integrated isolated DC/DC converter, simplifying the design process by eliminating the need for separate isolated power supplies.
• Data Communication: It supports SPI (Serial Peripheral Interface) data communication, making it compatible with a wide range of digital systems.
• Robust Operating Conditions: Operating over a temperature range of -40°C to 105°C, the LTM2892IY-S#PBF is suitable for harsh industrial environments.
• Soft Shutdown: The device features a soft shutdown mode that minimizes current transients during power-down, providing additional protection for the device and the system.

Applications

The LTM2892IY-S#PBF is ideal for a variety of applications where data integrity and isolation are critical. These include:

• Industrial automation and control systems
• Medical equipment with stringent isolation requirements
• Automotive systems
• Test and measurement equipment
• Power supply control and monitoring

Package and Reliability

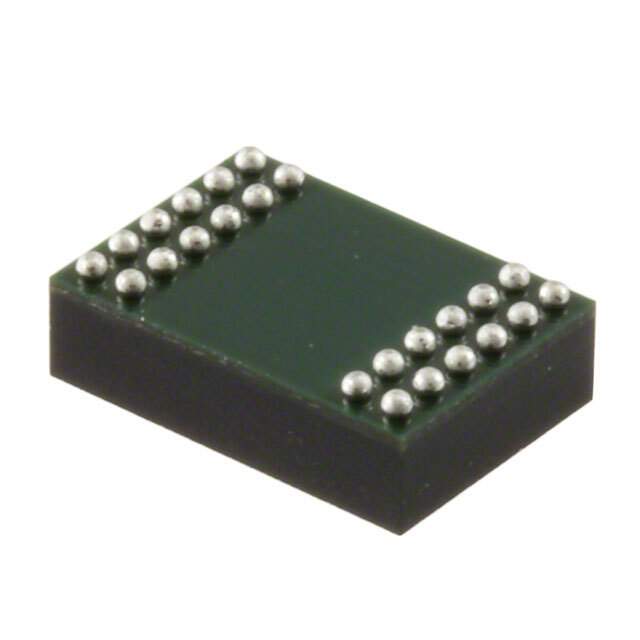

The device is housed in a compact, surface-mount LGA package that ensures a minimal footprint on the PCB, making it suitable for space-constrained applications. The LTM2892IY-S#PBF is RoHS compliant and is designed for long-term reliability, backed by Linear Technology's rigorous testing and quality assurance processes.

In summary, the LTM2892IY-S#PBF from Linear Technology is a versatile, high-performance isolated transceiver that provides robust data communication and power in a single, compact package. It is an excellent choice for engineers looking for a reliable isolation solution for their sensitive electronic systems.
