The LTM4600HVIV#PBF is a complete and high-efficiency 10A switch mode DC/DC power supply developed by Linear Technology. It is part of Linear Technology's µModule (micromodule) family, which integrates the DC/DC controller, power switches, inductor, and all support components into a compact, surface-mount package. This product is designed to simplify the design and implementation of power management in a wide variety of applications.

Key Features

• Wide Input Voltage Range: The LTM4600HVIV#PBF is capable of operating with an input voltage range from 4.5V to 32V, making it versatile for use in various systems with different power requirements.
• High Output Voltage Range: This µModule regulator provides an adjustable output voltage range from 0.8V up to 10V, which can be set with a single external resistor, catering to a broad spectrum of applications.
• High Efficiency: The high efficiency of up to 92% minimizes heat generation and makes it suitable for high-density circuit designs.

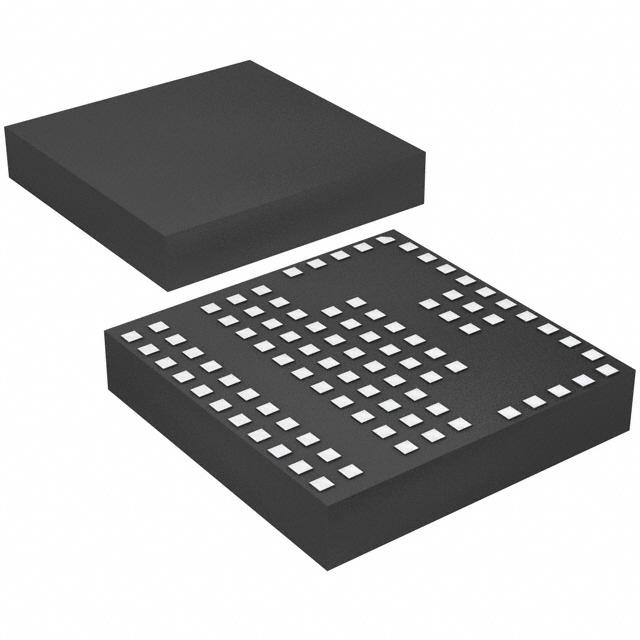

• Compact Design: Its small footprint (15mm x 15mm x 2.82mm LGA package) allows for use in space-constrained applications without sacrificing power capability or efficiency.
• Integrated Components: With the inductor, power switches, DC/DC controller, and supporting components all housed within the package, the LTM4600HVIV#PBF simplifies layout and reduces external component count, which can improve reliability and reduce board space.
• Advanced Thermal Performance: The device's over-molded construction enhances thermal performance and allows for effective heat dissipation, supporting operation at full current up to 85°C ambient without airflow.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection, ensuring safe operation under abnormal conditions.

Applications

The LTM4600HVIV#PBF is ideal for a wide range of applications, including telecommunications, industrial systems, battery-powered devices, and medical equipment. Its ability to provide a stable and efficient power supply in a compact form factor makes it an excellent choice for designers looking to optimize power management in sophisticated electronic systems.
