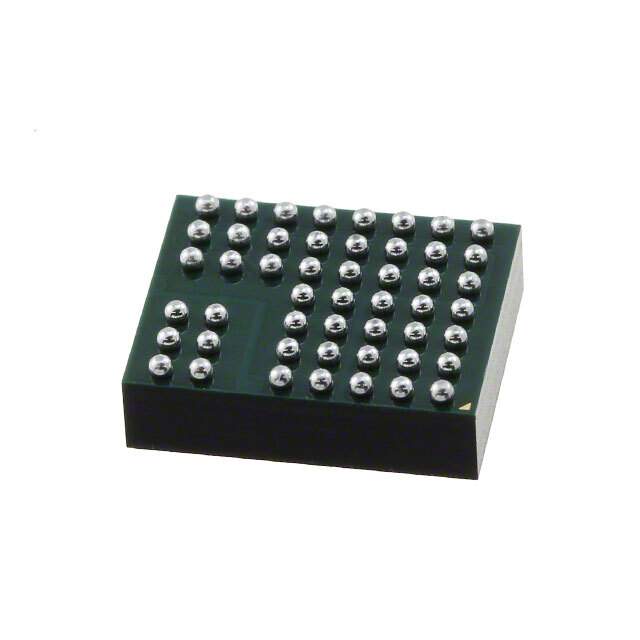

Product Overview: LTM8023IY from Linear Technology

The LTM8023IY is a complete and compact micro-module regulator from Linear Technology, designed to deliver high performance in power conversion applications. This innovative solution integrates the inductor, power switches, a DC/DC controller, and all the supporting components into a compact, surface-mount package. With this level of integration, the LTM8023IY simplifies the design process for engineers and reduces the overall footprint on the printed circuit board (PCB).

Key Features

• Wide Input Voltage Range: The LTM8023IY operates efficiently with an input voltage range of 3.6V to 36V, making it versatile for a variety of supply voltages.
• Adjustable Output Voltage: Its output voltage can be adjusted from 0.8V to 10V, providing flexibility for different voltage requirements.
• High Efficiency: With an integrated switching regulator, the LTM8023IY achieves high efficiency, which is critical for thermal management and energy savings.
• Compact Design: The micro-module design encapsulates all necessary components, including the inductor, in a 9mm x 15mm x 4.32mm LGA package, saving valuable board space.
• Output Current: It provides up to 2A of continuous output current, suitable for a range of moderate power applications.

Applications

The LTM8023IY is ideal for use in a variety of applications that require efficient power conversion, including but not limited to:

• Industrial controls
• Automotive systems
• Telecommunications equipment
• Data storage systems

Reliability and Quality

Linear Technology is known for its commitment to quality and reliability, and the LTM8023IY is no exception. It is designed to meet rigorous performance standards and is suitable for use in demanding environments. This product is RoHS compliant and is designed with over-temperature protection, over-current protection, and input under-voltage lockout to ensure the safety and longevity of both the module and the application it serves.

With its ease of use, integrated design, and reliable performance, the LTM8023IY from Linear Technology is an excellent choice for designers looking to streamline their power supply design with a trusted and efficient solution.
