The LTM8033EY#PBF is a high-performance DC/DC converter module designed and manufactured by Linear Technology. This innovative power solution is a part of the µModule (micro module) series, which integrates a switching regulator, inductor, and supporting components into a compact, surface-mount package. This product is engineered to simplify the design process and accelerate time-to-market for a wide range of applications.

Key Features

• Integrated Design: The LTM8033EY#PBF combines a step-down switching regulator with all the necessary components, including the inductor, into a single package, reducing design complexity and footprint on the PCB.
• Wide Input Voltage Range: This µModule operates with an input voltage range from 3.6V to 36V, making it suitable for a variety of supply sources, from single-cell Li-Ion batteries to industrial supplies.
• Adjustable Output Voltage: The output voltage can be set from 0.8V to 24V, providing flexibility for different voltage requirements.
• High Efficiency: With high efficiency up to 92%, the LTM8033EY#PBF minimizes power loss and thermal dissipation, which is critical for performance and reliability in space-constrained applications.

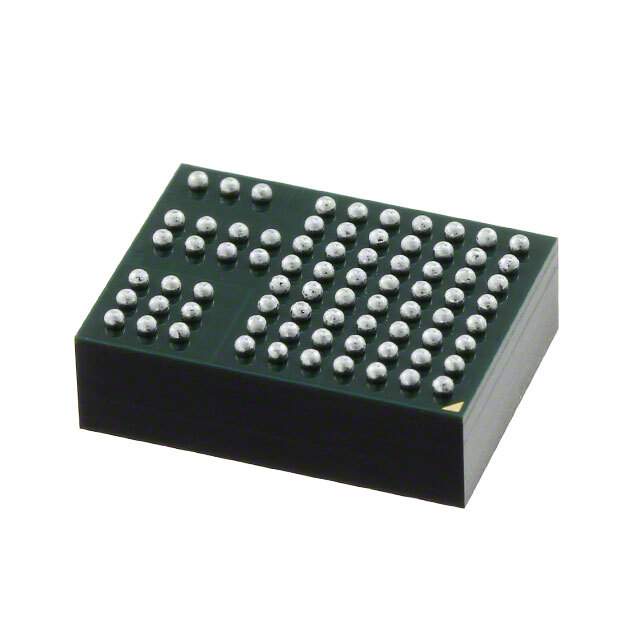

• Compact Package: The device comes in a small (15mm x 15mm x 4.92mm) over-molded land grid array (LGA) package that is suitable for automated assembly and space-constrained applications.
• Thermal Performance: The LTM8033EY#PBF is designed to operate at full current up to 85°C without airflow, thanks to its excellent thermal performance.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection, ensuring safe operation under abnormal conditions.

Applications

The LTM8033EY#PBF is versatile and can be used in a broad array of applications such as:

• Telecommunications Infrastructure
• Industrial Equipment
• Automotive Systems
• Datacom and Telecom Systems
• Distributed Power Systems

With its robust design and ease of use, the LTM8033EY#PBF from Linear Technology is an excellent choice for designers looking for a reliable and efficient power management solution.
