The LTM9004IV-AC#PBF is an advanced, highly integrated data conversion solution from Linear Technology. This product is part of Linear's μModule (micro module) series, which encapsulates high performance ADCs, signal conditioning, filtering, and a bypass capacitor in a compact, surface-mount package. This design simplifies the implementation of complex circuits, making it ideal for high-speed communication systems, medical imaging, and industrial data acquisition applications.

Key Features:

• Integrated ADC: The LTM9004IV-AC#PBF features a 14-bit, 125Msps ADC that delivers superior performance in terms of signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR), ensuring accurate data acquisition for critical applications.
• Signal Conditioning: Built-in passive filtering and a differential input stage provide excellent signal conditioning, which reduces the need for external components and simplifies PCB layout.
• High Integration: The μModule ADC integrates an ADC, passive filtering, and all the necessary bypass capacitors in a single package, offering a complete system-in-a-package solution that minimizes design time and board space.
• Easy to Use: The LTM9004IV-AC#PBF is designed to be user-friendly, with support for a single 3.3V supply and an internal bypass capacitance that reduces the need for external components and simplifies power supply design.

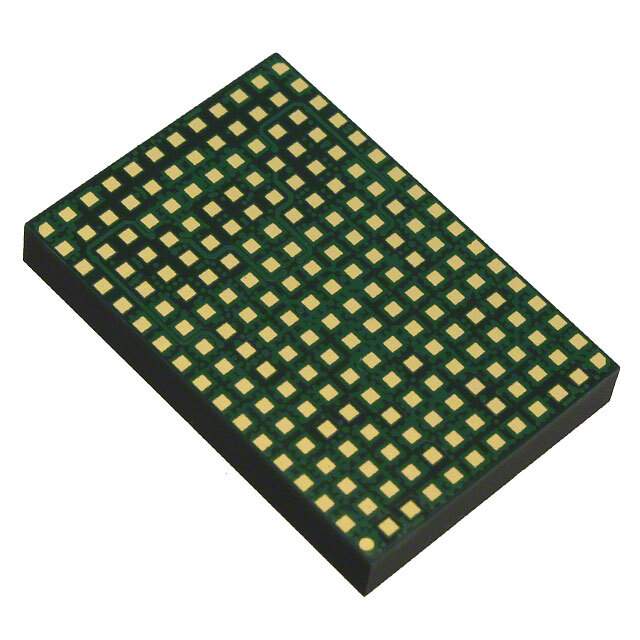

• Robust Design: Enclosed in a compact 15mm x 15mm x 2.82mm LGA package, this product is built to withstand harsh industrial environments and is rated for operation from -40°C to +85°C.

Applications:

• Wireless and Wired Broadband Communication
• Medical Imaging Systems
• Industrial Instrumentation
• High-Speed Data Acquisition Systems

The LTM9004IV-AC#PBF is not just an ADC; it's a comprehensive solution that accelerates development cycles and enhances system performance. With its high level of integration and ease of use, this μModule ADC is an excellent choice for engineers looking to improve the precision and efficiency of their data conversion processes in a wide range of applications.
