Same model may have multiple batches, images only for reference.

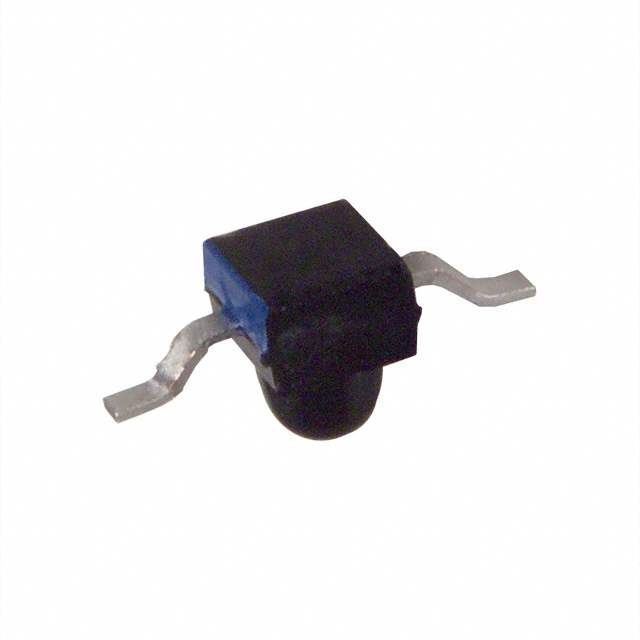

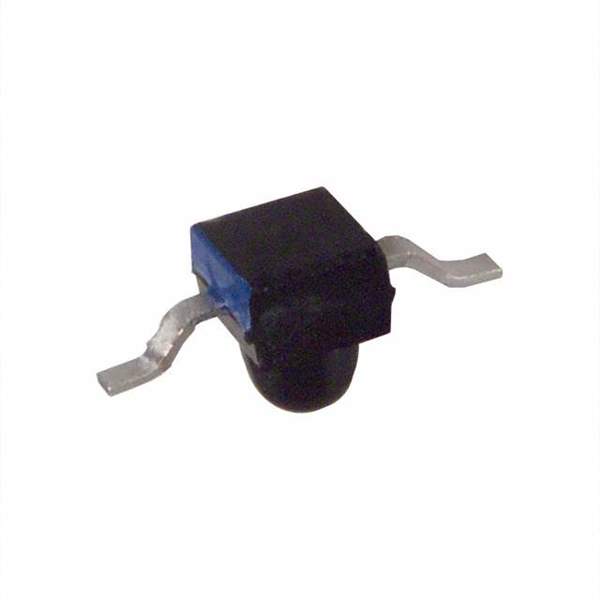

HSDL-5420#031 Real Image
Same model may have multiple batches, images only for reference.

HSDL-5420#031

Part No HSDL-5420#031
Manufacturer Lite-On Inc.
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE IR 2X2MM DOME ZBEND
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Wavelength 875nm
Spectral Range 770nm to 1000nm
Diode Type PIN
Response Time 7.5ns
Voltage - DC Reverse (Vr) (Max) 40V
Current - Dark (Typ) 1nA
Active Area 0.15mm2
Viewing Angle 56°
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 2-SMD, Z-Bend
Win Source Part Number 001708-HSDL-5420#031
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian HSDL-5420#031 CAD Model

Description

The Lite-On Inc. 001708-HSDL-5420#031 electronic component is a PIN diode type with a viewing angle of 56° and a wavelength of 875nm. Its voltage - DC reverse (Vr) (max) is 40V and its response time is 7.5ns. The supply and demand status is balance.
