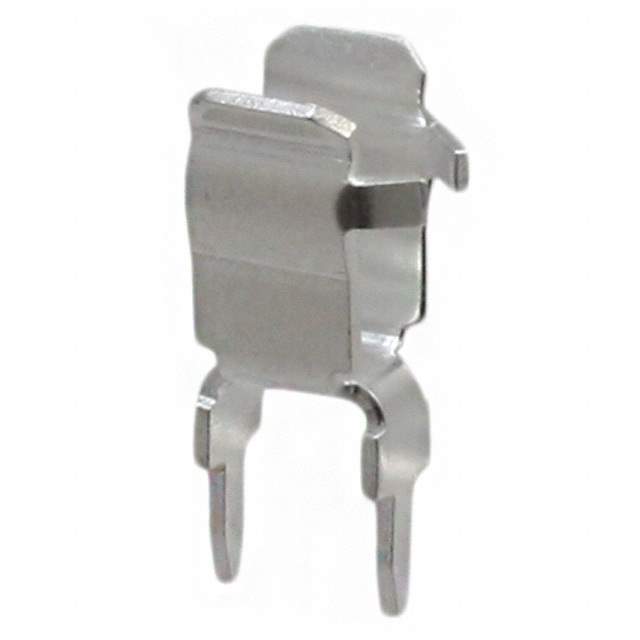

01000054Z Real Image
Same model may have multiple batches, images only for reference.

01000054Z

Part No 01000054Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 250V 10A PCB / Fuse Clip 10 A 250V 1 Circuit Cartridge Through Hole
Datasheet
01000054Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series 100
Package Bulk
Mounting Type Through Hole
Fuse Size 0.197" Dia (5mm)
Current Rating (Amps) 10 A
For Use With/Related Products 5mm Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage 250V
Orientation Horizontal
Termination Style PC Pin
Contact Material Spring Brass
Contact Finish Silver
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Names F3780,-1024-01000054Z
Standard Package 2,000
Win Source Part Number 1126614-01000054Z
Ultra Librarian 3D Model Ultra Librarian 01000054Z CAD Model

Description

The 1126614-01000054Z is a circuit protection fuseholder from Littelfuse Inc.

  • Fuse Size: 5mm Diameter
  • Contact Material: Spring Brass
  • Contact Finish: Silver
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Package: Bulk
  • Mounting Style: Through-Hole
  • Orientation: Horizontal
  • Standard Package: 2000 pieces
  • Fuse Diameter: 0.197" (5mm)
