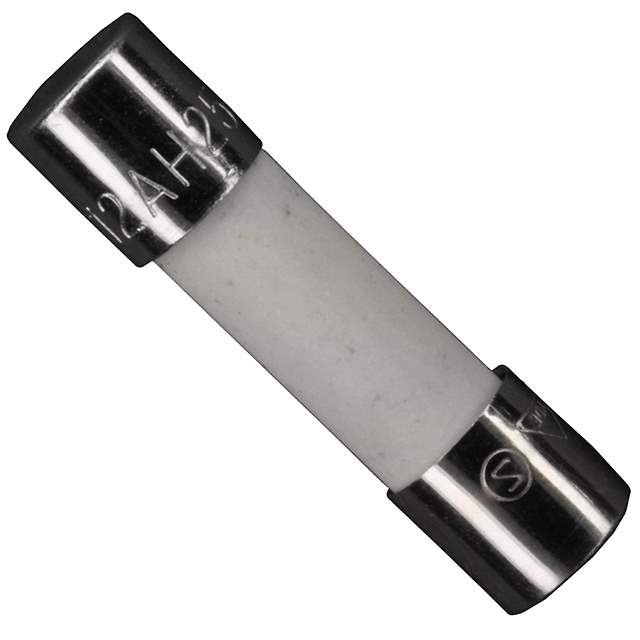

0215004.MXP Real Image
Same model may have multiple batches, images only for reference.

0215004.MXP

Part No 0215004.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description 215SP Series, 5x20 mm, Time-Lag Fuse (Slo-Blo®) | FUSE CERAMIC 4A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 4A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 46.96
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0185 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120493-0215004.MXP
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Safety
Ultra Librarian 3D Model Ultra Librarian 0215004.MXP CAD Model

Description

The Littelfuse Inc. 1120493-0215004.MXP is a cartridge, ceramic type slow blow fuse from the circuit protection category.

  • Fuse Type: cartridge, ceramic type slow blow
  • Package Size: 5mm x 20mm
  • Packaging: bulk
  • Manufacturer Pack Quantity: 1,000
  • Voltage Rating-AC: 250V
  • DC Cold Resistance: 0.0185 Ohms
  • Approvals: CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
  • Temperature Range of Operation: -55°C ~ 125°C
  • Popularity: medium
  • HTSUS: not available
