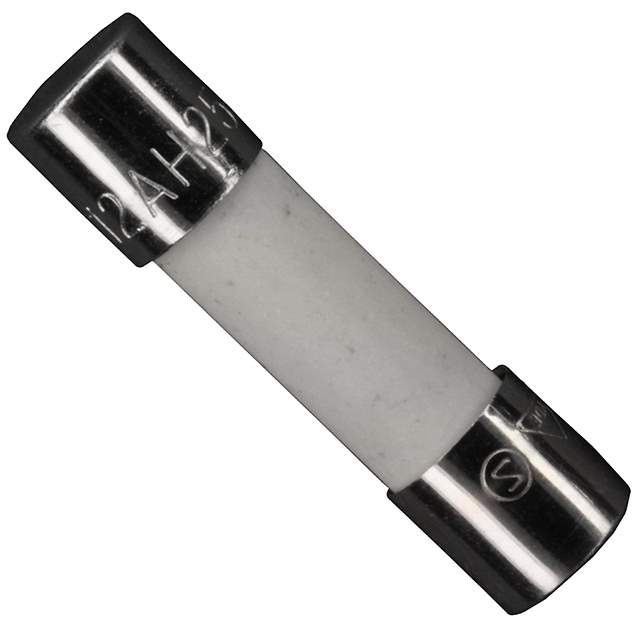

0215012.MXP Real Image
Same model may have multiple batches, images only for reference.

0215012.MXP

Part No 0215012.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 12A 250VAC 5X20MM / 215 Series, 5 x 20 mm, Time-Lag (Slo-Blo®) Fuse
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 12A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 515.5
Approvals CE, CSA, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0061 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804172-0215012.MXP
Ultra Librarian 3D Model Ultra Librarian 0215012.MXP CAD Model

Description

The Littelfuse Inc. 804172-0215012.MXP is a ceramic cartridge fuse that has a voltage rating of 250V AC and a current rating of 12A.

  • Voltage Rating: 250V AC
  • Current Rating: 12A
  • Response Time: Slow Blow
  • DC Cold Resistance: 0.0061 Ohms
  • Packaging: Bulk
  • Dimension: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Mounting: Holder
  • Approvals: CE, CSA, PSE, SEMKO, UL, VDE
