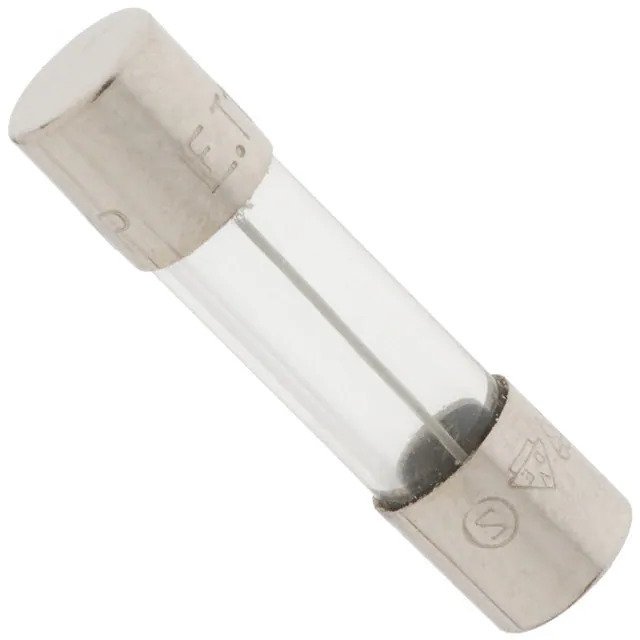

Same model may have multiple batches, images only for reference.
02173.15HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

02173.15HXP

Part No 02173.15HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3.15A 250VAC 5X20MM / 3.15 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 217
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 35A
Melting I²t 17.72
Approval Agency BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0224 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361406-02173.15HXP
Ultra Librarian 3D Model Ultra Librarian 02173.15HXP CAD Model

Description

The 1361406-02173.15HXP is a cartridge fuse manufactured by Littelfuse Inc.

  • Series: 217
  • Function: Circuit Protection
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 3.15A
  • Voltage Rating: 250V AC
  • Response Time: Fast Blow
  • Breaking Capacity: 35A @ rated voltage
  • Size: 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
  • Mounting Type: Holder
  • Approvals: BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE
  • Product Status: Active
