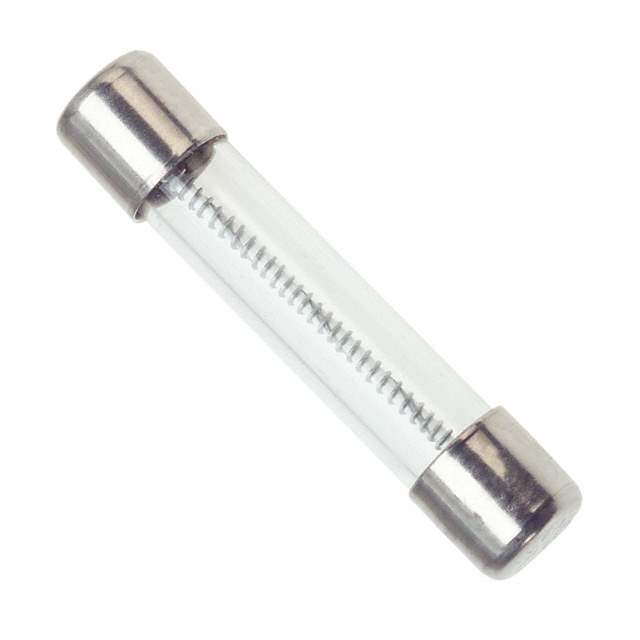

0313005.MXP Real Image
Same model may have multiple batches, images only for reference.

0313005.MXP

Part No 0313005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 5A 250VAC 3AB 3AG  /  5 A 250 V AC DC Fuse Cartridge, Glass Holder 3AB, 3AG, 1/4" x 1-1/4"
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 313
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4"
Breaking Capacity @ Rated Voltage 200A
Melting I2t 276
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
DC Cold Resistance 0.0214 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Names 0313005MXP,0313005.MXP-ND,-1024-0313005.MXP,313005MXP,313005.MXP,F1769
Standard Package 1,000
Win Source Part Number 1118266-0313005.MXP
Ultra Librarian 3D Model Ultra Librarian 0313005.MXP CAD Model

Description

This is a cartridge, glass fuse type electronic component with a voltage rating - AC of 250 V.

  • Fuse Type: Cartridge, Glass
  • Voltage Rating - AC: 250 V
  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 200A
  • Melting I2t: 276
  • DC Cold Resistance: 0.0214 Ohms
  • Current Rating (Amps): 5 A
  • Mounting: Holder
  • Package/Case: 3AB, 3AG, 1/4" x 1-1/4"
  • Temperature Range: -55°C ~ 125°C
  • Manufacturer: Littelfuse Inc.
