Same model may have multiple batches, images only for reference.

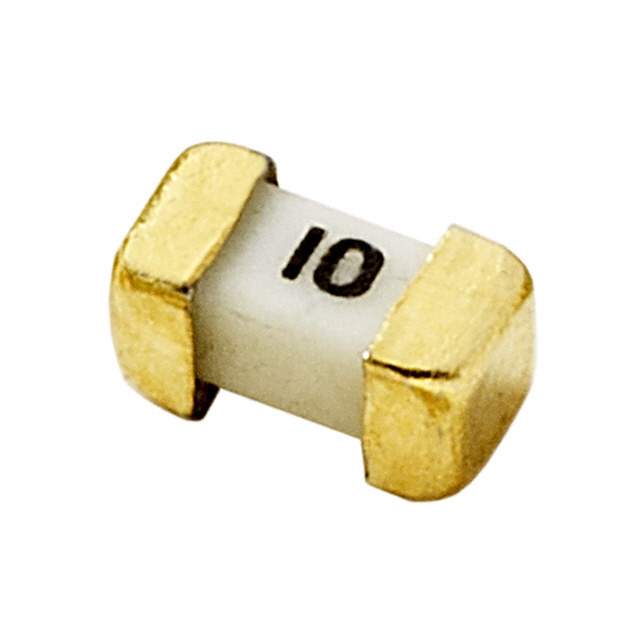

045803.5DR Real Image
Same model may have multiple batches, images only for reference.

045803.5DR

Part No 045803.5DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 3.5A 48VAC 75VDC
Datasheet
045803.5DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3.5A
Voltage Rating - AC 48V
Voltage Rating - DC 75V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 4
Approvals cULus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.0375 Ohm
Win Source Part Number 1000168-045803.5DR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 045803.5DR CAD Model

Description

The Littelfuse Inc. 1000168-045803.5DR from Littelfuse Inc. is a board mount fuse.

  • Type: Board Mount Fuse
  • Current Rating: 3.5A
  • Voltage Rating: 48V AC and 75V DC
  • Response Time: Fast
  • Breaking Capacity: 50A @ Rated Voltage
  • Package: Reel - TR
  • Operating Temperature: -55°C to 125°C
  • Application: Circuit protection
