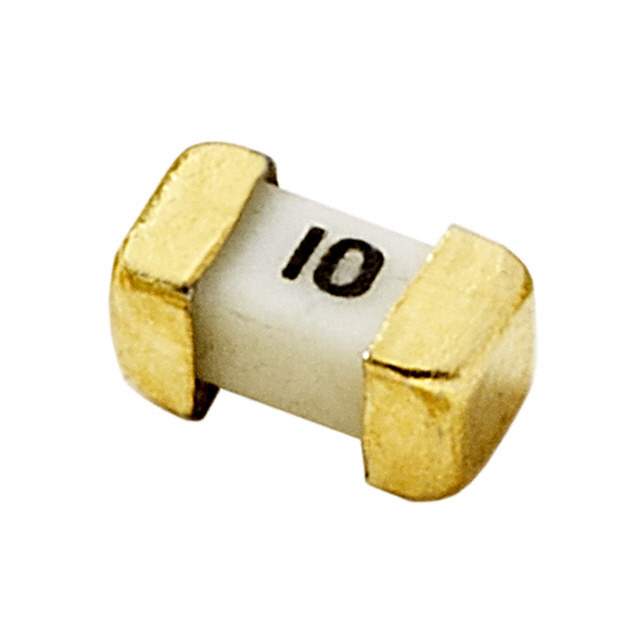

04583.15DR Real Image
Same model may have multiple batches, images only for reference.

04583.15DR

Part No 04583.15DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 3.15A 48VAC 75VDC / Surface Mount Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15A
Voltage Rating - AC 48V
Voltage Rating - DC 75V
Response Time Fast Blow
Manufacturer Package 1206 (3216 Metric)
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A
Melting I2t 2.457
Approvals cULus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm)
DC Cold Resistance 0.045 Ohms
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808581-04583.15DR
Ultra Librarian 3D Model Ultra Librarian 04583.15DR CAD Model

Description

The Littelfuse Inc. 04583.15DR is a fast-blow fuse.

  • Mounting Type: Surface-mount
  • Voltage Rating: 48V AC, 75V DC
  • Current Rating: 3.15A
  • Breaking Capacity @ Rated Voltage: 50A
  • Applications: Power supplies, amplifiers, voltage regulators
  • RoHS Compliant: Yes
  • Popularity: Medium
