Same model may have multiple batches, images only for reference.

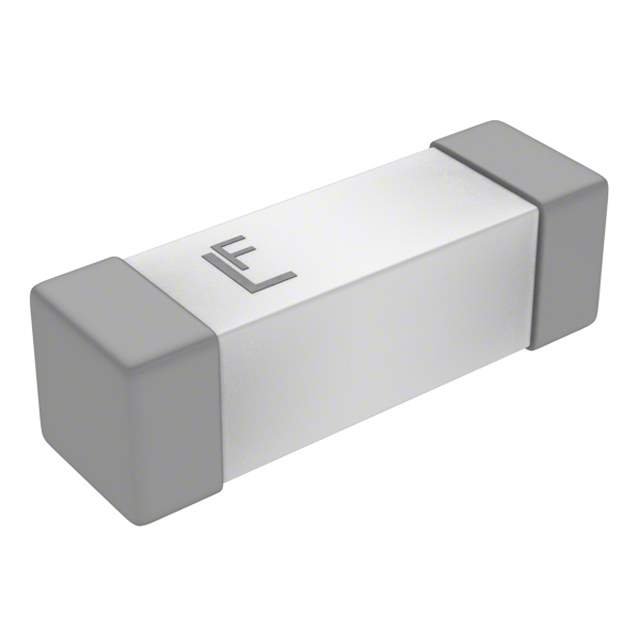

046502.5DR Real Image
Same model may have multiple batches, images only for reference.

046502.5DR

Part No 046502.5DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 2.5A 250VAC SMD  /  2.5 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series NANO²® 465
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2.5 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A
Melting I2t 21
Approval Agency PSE, UMF
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm)
DC Cold Resistance 0.026 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names F3669CT,-046502.5DR,0465025DR,1294-046502.5DR,046502.5DR-ND,046502.5DRX,F3669DKR,46502.5,F3669TR
Standard Package 1,500
Win Source Part Number 1010890-046502.5DR
Ultra Librarian 3D Model Ultra Librarian 046502.5DR CAD Model

Description

This electronic component is a fuse that is part of the NANO™ 465 series.

  • Win Source Part Number: 1010890-046502.5DR
  • Fuse Type: Board Mount (Cartridge Style Excluded)
  • Voltage Rating: 250V AC
  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 100A
  • Melting I2t: 21
  • DC Cold Resistance: 0.026 Ohms
  • Package: Tape and Reel
  • Units per Standard Package: 1,500
  • Mounting Style: SMD (SMT)
  • Package/Case: 2-SMD, Square End Block
  • Temperature Range: -55°C to 125°C
  • Fuse Dimensions: 0.476" L x 0.177" W x 0.177" H (12.10mm x 4.50mm x 4.50mm)
  • MSL Level: 1 (unlimited)
  • Current Rating: 2.5A
